SX1280ED1ZHP

Active

Semtech Corporation

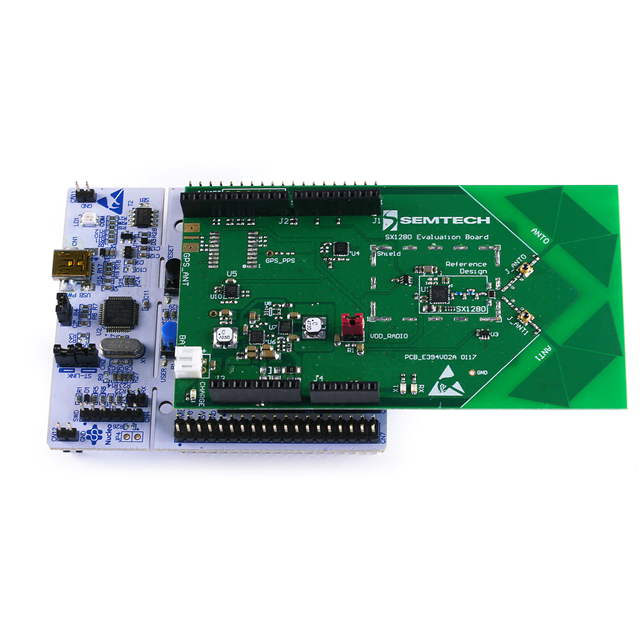

SX1280 2.4GHZ END-DEVICE DEV KIT

Search across all available documentation for this part.

Active

Semtech Corporation

SX1280 2.4GHZ END-DEVICE DEV KIT

Technical Specifications

Parameters and characteristics for this part

Specification	SX1280ED1ZHP

For Use With/Related Products	SX1280
Frequency	2.4 GHz
Supplied Contents	Board(s)
Type	Modem

Part	Sensitivity	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]	RF Family/Standard	Power - Output	Current - Transmitting	Modulation	Frequency	Protocol	Supplier Device Package	Type	Package / Case	Serial Interfaces	Current - Receiving	For Use With/Related Products	Supplied Contents
Semtech Corporation SX1280DVK1ZHPTELEC
Semtech Corporation SX1280IMLTRT	-132 dBm	Surface Mount	85 °C	-40 °C	3.7 V	1.8 V	802.15.4	12.5 dBm	24 mA	GFSK	2.4 GHz	LoRa™	24-QFN (4x4)	TxRx Only	24-WFQFN Exposed Pad	SPI UART	8.2 mA
Semtech Corporation SX1280ED1ZHP											2.4 GHz			Modem				SX1280	Board(s)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

- SX1280 Modem 2.4GHz Evaluation Board
