MP20049DC-2.8-LF-P

MONOLITHIC POWER SYSTEMS (MPS)

IC REG LINEAR 2.8V 150MA 4WLCSP

Search across all available documentation for this part.

MONOLITHIC POWER SYSTEMS (MPS)

IC REG LINEAR 2.8V 150MA 4WLCSP

Technical Specifications

Parameters and characteristics for this part

Specification	MP20049DC-2.8-LF-P

Control Features	Enable
Current - Output	150 mA
Current - Quiescent (Iq)	75 µA
Mounting Type	Surface Mount
Number of Regulators	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Positive
Output Type	1.81 mOhm
Protection Features	Over Current, Over Temperature
PSRR [Max]	78 dB
PSRR [Min]	55 dB

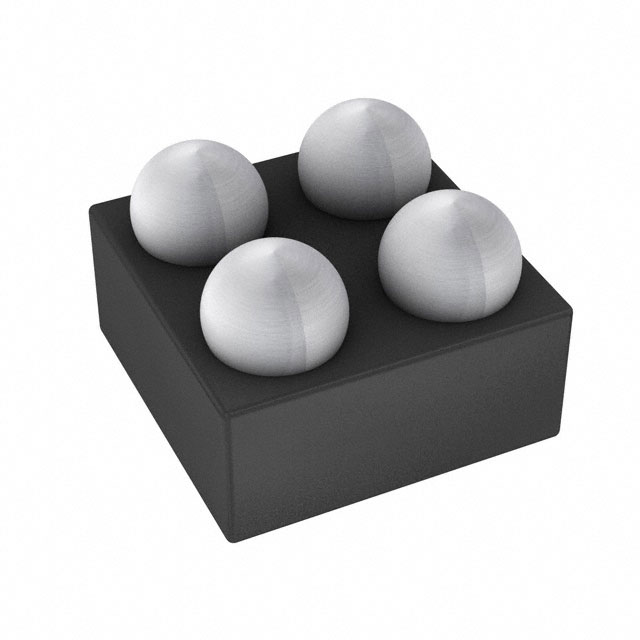

Supplier Device Package	4-WLCSP (0.82x0.82)
Voltage - Input (Max) [Max]	6 V
Voltage - Output (Min/Fixed)	2.8 V
Voltage Dropout (Max) [Max]	0.12 V

Part	Voltage - Output (Min/Fixed)	Output Configuration	Supplier Device Package	Control Features	Protection Features	Operating Temperature [Max]	Operating Temperature [Min]	Output Type	Voltage Dropout (Max) [Max]	Mounting Type	Number of Regulators	PSRR [Max]	PSRR [Min]	Current - Quiescent (Iq)	Current - Output	Voltage - Input (Max) [Max]
MONOLITHIC POWER SYSTEMS (MPS) MP20049DC-2.8-LF-Z	2.8 V	Positive	4-WLCSP (0.82x0.82)	Enable	Over Current Over Temperature	125 °C	-40 °C	1.81 mOhm	0.12 V	Surface Mount	1	78 dB	55 dB	75 µA	150 mA	6 V
MONOLITHIC POWER SYSTEMS (MPS) MP20049DC-2.8-LF-P	2.8 V	Positive	4-WLCSP (0.82x0.82)	Enable	Over Current Over Temperature	125 °C	-40 °C	1.81 mOhm	0.12 V	Surface Mount	1	78 dB	55 dB	75 µA	150 mA	6 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Linear Voltage Regulator IC Positive Fixed 1 Output 150mA 4-WLCSP (0.82x0.82)
