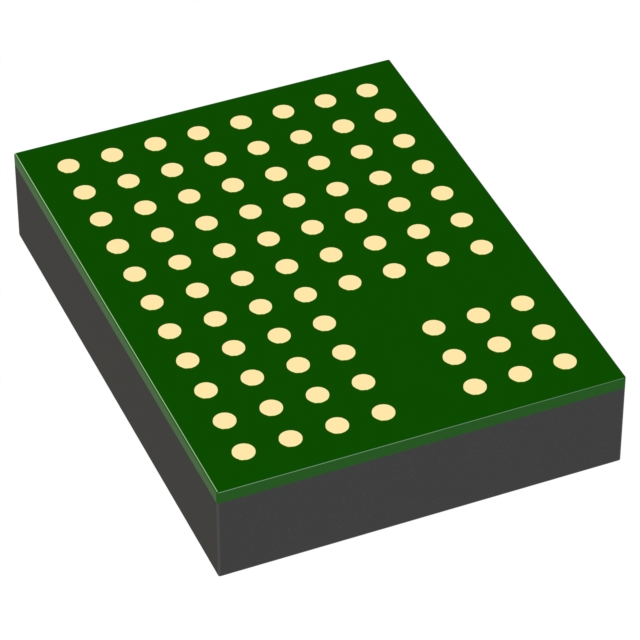

LTM8052MPV#PBF

Active

Analog Devices

36VIN, 5A, 2-QUADRANT CVCC STEP-DOWN ΜMODULE REGULATOR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet R598 Reliability Data

LTM8052MPV#PBF

Active

Analog Devices

36VIN, 5A, 2-QUADRANT CVCC STEP-DOWN ΜMODULE REGULATOR

Deep-Dive with AI

DocumentsDatasheet R598 Reliability Data

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LTM8052MPV#PBF

Applications	ITE (Commercial)
Current - Output (Max) [Max]	5 A
Features	OVP, UVLO, OCP
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	81-BLGA Module
Size / Dimension [x]	0.59 in
Size / Dimension [x]	15 mm
Size / Dimension [y]	0.44 in
Size / Dimension [y]	11.3 mm
Size / Dimension [z]	0.11 in
Size / Dimension [z]	2.8 mm
Supplier Device Package	81-LGA (15x11.25)
Type	Non-Isolated PoL Module
Voltage - Input (Max) [Max]	36 V
Voltage - Input (Min) [Min]	6 V
Voltage - Output 1 [Max]	24 V
Voltage - Output 1 [Min]	1.2 V

LTM8052LTM8052A Series

36VIN, 5A, 2-Quadrant CVCC Step-Down μModule Regulator

Part	Voltage - Input (Max) [Max]	Type	Current - Output (Max) [Max]	Package / Case	Applications	Features	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Number of Outputs	Voltage - Input (Min) [Min]	Supplier Device Package
Analog Devices LTM8052MPY	36 V	Non-Isolated PoL Module	5 A	81-BBGA Module	ITE (Commercial)	OCP OTP OVP	Surface Mount	-55 °C	125 °C	0.44 in	0.59 in	11.3 mm	15 mm	0.11 in	2.8 mm	24 V	1.2 V	1	6 V
Analog Devices LTM8052EV#PBF	36 V	Non-Isolated PoL Module	5 A	81-BLGA Module	ITE (Commercial)	UVLO	Surface Mount	-40 °C	125 °C	0.44 in	0.59 in	11.3 mm	15 mm	0.11 in	2.8 mm	24 V	1.2 V	1	6 V	81-LGA (15x11.25)
Analog Devices LTM8052MPV#PBF	36 V	Non-Isolated PoL Module	5 A	81-BLGA Module	ITE (Commercial)	OCP OVP UVLO	Surface Mount	-55 °C	125 °C	0.44 in	0.59 in	11.3 mm	15 mm	0.11 in	2.8 mm	24 V	1.2 V	1	6 V	81-LGA (15x11.25)
Analog Devices LTM8052IY#PBF	36 V	Non-Isolated PoL Module	5 A	81-BBGA Module	ITE (Commercial)	OCP OTP OVP	Surface Mount	-40 °C	125 °C	0.44 in	0.59 in	11.3 mm	15 mm	0.11 in	2.8 mm	24 V	1.2 V	1	6 V
Analog Devices LTM8052AIV#PBF	36 V	Non-Isolated PoL Module	5 A	81-BLGA Module	ITE (Commercial)	OTP OVP UVLO	Surface Mount	-40 °C	125 °C	0.44 in	0.59 in	11.3 mm	15 mm	0.11 in	2.8 mm	24 V	1.2 V	1	6 V	81-LGA (15x11.25)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 52.03
		5	$ 49.05
		10	$ 47.82
		25	$ 46.24
		40	$ 45.45
		80	$ 44.31
		230	$ 42.63

Description

General part information

LTM8052LTM8052A Series

The LTM8052/LTM8052A is a 36VIN, 5A, 2-quadrant constant-voltage, constant-current (CVCC) step-down μModule®(power module) regulator. Included in the package are the switching controller, power switches, inductor and support components. Operating over an input voltage range of 6V to 36V, the LTM8052/LTM8052A supports an output voltage range of 1.2V to 24V. The LTM8052/LTM8052A is able to sink or source current to maintain voltage regulation up to the positive and negative current limits. This output current limit can be set by a control voltage, a single resistor or a thermistor. LTM8052 features a 125% output overvoltage protection, while LTM8052A does not, allowing operation when the output is above the target regulation point.The LTM8052/LTM8052A is packaged in a compact (11.25mm × 15mm × 2.82mm) overmolded land grid array (LGA) and ball grid array (BGA) package suitable for automated assembly by standard surface mount equipment. The LTM8052/LTM8052A are available with SnPb (BGA) or RoHS compliant terminal finish.PART NUMBERBEST FORLTM8052Sinking and sourcing output current for voltage regulation primarily.LTM8052ASinking and sourcing output current for current regulation primarily.LTM8026Sourcing more than 3A of output current. (Less than 3A maximum consider LTM8025.)ApplicationsConstant-Frequency Voltage Regulation Even at No LoadPeltier DriverBattery TesterBattery/Supercap Charging and Cell BalancingMotor Drive Power RegulatorHigh Power LED Drive
