05K132-K00S3

Active

Rosenberger

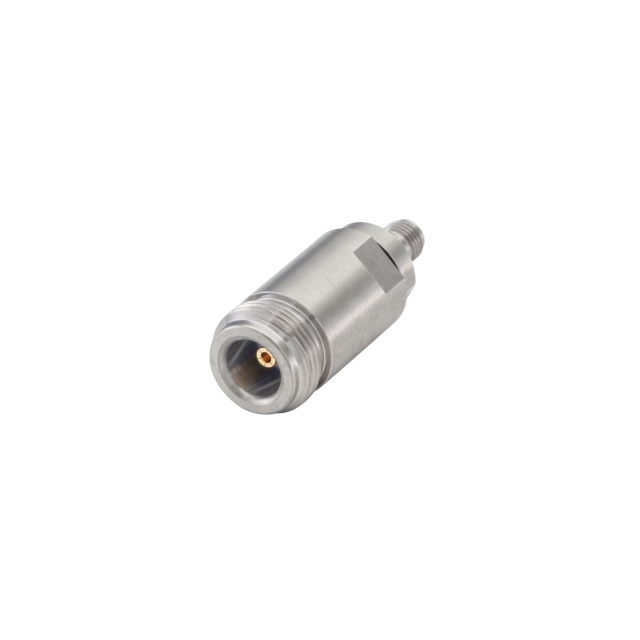

COAX ADAPT RPC-N TO SMA

Search across all available documentation for this part.

Active

Rosenberger

COAX ADAPT RPC-N TO SMA

Technical Specifications

Parameters and characteristics for this part

Specification	05K132-K00S3

Adapter Series	SMA, RPC-N
Adapter Type	Jack to Jack
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Between Series
Convert From (Adapter End)	N Jack, Female Socket
Convert To (Adapter End)	SMA Jack, Female Socket
Dielectric Material	Polyphenylene Ether (PPE), Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Impedance	50 Ohms
Insertion Loss	0.42 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Style	Straight

Part	Mounting Type	Convert To (Adapter End)	Center Contact Plating	Body Material	Adapter Series	Adapter Type	Mating Cycles	Dielectric Material	Conversion Type	Style	Insertion Loss	Center Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Frequency - Max [Max]	Convert From (Adapter End)	Center Gender	Impedance
Rosenberger 05K132-K00S3	Free Hanging (In-Line)	Female Socket SMA Jack	Gold	Stainless Steel	RPC-N SMA	Jack to Jack	500	Polyphenylene Ether (PPE) Polytetrafluoroethylene (PTFE)	Between Series	Straight	0.42 dB	Beryllium Copper	85 °C	-40 °C	18 GHz	Female Socket N Jack	Female to Female	50 Ohms
Rosenberger 05K132-S00S3	Free Hanging (In-Line)	Male Pin SMA Plug	Gold	Stainless Steel	RJC-N to SMA	Plug to Jack	500	Polyphenylene Ether (PPE) Polytetrafluoroethylene (PTFE)	Between Series	Straight	0.42 dB	Beryllium Copper	85 °C	-40 °C	18 GHz	Female Socket N Jack		50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5	$ 217.94

General part information

Adapter Coaxial Connector N Jack, Female Socket To SMA Jack, Female Socket 50 Ohms
