0229005.MXSP
ObsoleteLittelfuse/Commercial Vehicle Products
FUSE 125V SB IND 2AG PB-FREE 5A
Deep-Dive with AI
Search across all available documentation for this part.
0229005.MXSP
ObsoleteLittelfuse/Commercial Vehicle Products
FUSE 125V SB IND 2AG PB-FREE 5A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0229005.MXSP |
|---|---|
| Approval Agency | PSE, CE, UL, CSA |
| Breaking Capacity @ Rated Voltage | 400 A |
| Current Rating (Amps) | 5 A |
| DC Cold Resistance | 0.0186 Ohms |
| Melting I²t | 267 |
| Mounting Type | Requires Holder |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 2AG |
| Package / Case [x] | 5 mm |
| Package / Case [y] | 15 mm |
| Response Time | Slow Blow |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 125 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
0229005 Series

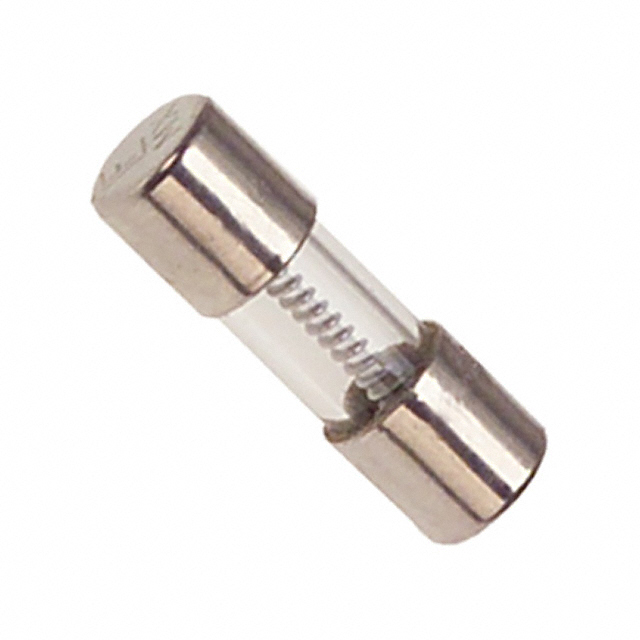

The 2AG Slo-Blo® Fuses are available in cartridge form or with axial leads. 2AG Fuses providing the same performance characteristics as their 3AG counterpart, while occupying one-third the space.
