C4BSWBX3220ZAFJ
ActiveKEMET

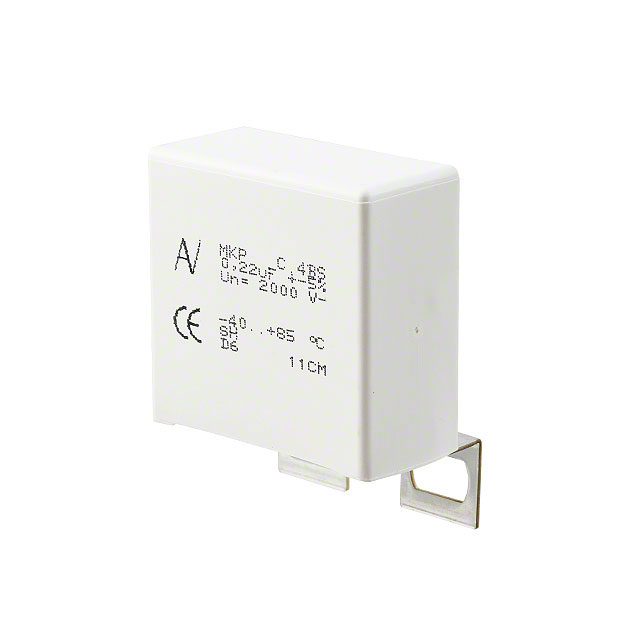

CAP, 0.22UF, 700VAC, FILM, RADIAL
Deep-Dive with AI
Search across all available documentation for this part.
C4BSWBX3220ZAFJ
ActiveKEMET
CAP, 0.22UF, 700VAC, FILM, RADIAL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | C4BSWBX3220ZAFJ |
|---|---|
| Applications | DC Link, DC Filtering, Snubber |
| Capacitance | 0.22 µF |
| Dielectric Material | Metallized, Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | 10.7 mOhms |
| Height - Seated (Max) [Max] [z] | 1.575 in |
| Height - Seated (Max) [Max] [z] | 40 mm |
| Lead Spacing | 25.5 mm |
| Lead Spacing | 1.004 in |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Rectangular Box |
| Size / Dimension [x] | 1.634 " |
| Size / Dimension [x] | 41.5 mm |
| Size / Dimension [y] | 20 mm |
| Size / Dimension [y] | 0.787 in |
| Termination | Screw Terminals |
| Tolerance | 5 % |
| Voltage Rating - AC | 700 V |
| Voltage Rating - DC | 2 kV |
| Voltage Rating - DC | 2 kVDC |
C4BSWB Series
| Part | Applications | Voltage Rating - DC | Voltage Rating - DC | Package / Case | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Dielectric Material | Mounting Type | ESR (Equivalent Series Resistance) | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Tolerance | Lead Spacing | Lead Spacing | Voltage Rating - AC | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Capacitance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
KEMET | DC Filtering DC Link Snubber | 2 kV | 2 kVDC | Rectangular Box | 1.575 in | 40 mm | Metallized Polypropylene (PP) | Chassis Mount | 5.1 mOhm | Screw Terminals | 85 °C | -40 °C | 5 % | 0.866 in | 22 mm | 700 V | 1.634 " | 20 mm | 41.5 mm | 0.787 in | 0.47 µF |
KEMET | DC Filtering DC Link Snubber | 2 kV | 2 kVDC | Rectangular Box | 1.575 in | 40 mm | Metallized Polypropylene (PP) | Chassis Mount | 23.3 mOhms | Screw Terminals | 85 °C | -40 °C | 5 % | 1.004 in | 25.5 mm | 700 V | 1.634 " | 20 mm | 41.5 mm | 0.787 in | 100000 pF |
KEMET | DC Filtering DC Link Snubber | 2 kV | 2 kVDC | Rectangular Box | 1.575 in | 40 mm | Metallized Polypropylene (PP) | Chassis Mount | 10.7 mOhms | Screw Terminals | 85 °C | -40 °C | 5 % | 1.004 in | 25.5 mm | 700 V | 1.634 " | 20 mm | 41.5 mm | 0.787 in | 0.22 µF |
KEMET | DC Filtering DC Link Snubber | 2 kV | 2 kVDC | Rectangular Box | 1.575 in | 40 mm | Metallized Polypropylene (PP) | Chassis Mount | 5.1 mOhm | Screw Terminals | 85 °C | -40 °C | 5 % | 0.866 in | 22 mm | 700 V | 1.634 " | 20 mm | 41.5 mm | 0.787 in | 0.47 µF |
KEMET | DC Filtering DC Link Snubber | 2 kV | 2 kVDC | Rectangular Box | 1.575 in | 40 mm | Metallized Polypropylene (PP) | Chassis Mount | 5.1 mOhm | Screw Terminals | 85 °C | -40 °C | 5 % | 1.004 in | 25.5 mm | 700 V | 1.634 " | 20 mm | 41.5 mm | 0.787 in | 0.47 µF |
KEMET | DC Filtering DC Link Snubber | 2 kV | 2 kVDC | Rectangular Box | Metallized Polypropylene (PP) | Chassis Mount | Screw Terminals | 85 °C | -40 °C | 5 % | 0.22 µF | ||||||||||
KEMET | DC Filtering DC Link Snubber | 2 kV | 2 kVDC | Rectangular Box | Metallized Polypropylene (PP) | Chassis Mount | 3.5 Ohms | Screw Terminals | 85 °C | -40 °C | 5 % | 1.614 in | 41 mm | 700 V | 2.264 in | 35 mm | 57.5 mm | 1.378 " | 1.5 µF | ||
KEMET | DC Filtering DC Link Snubber | 2 kV | 2 kVDC | Rectangular Box | Metallized Polypropylene (PP) | Chassis Mount | Screw Terminals | 85 °C | -40 °C | 5 % | 100000 pF |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
C4BSWB Series
0.22 µF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Rectangular Box
