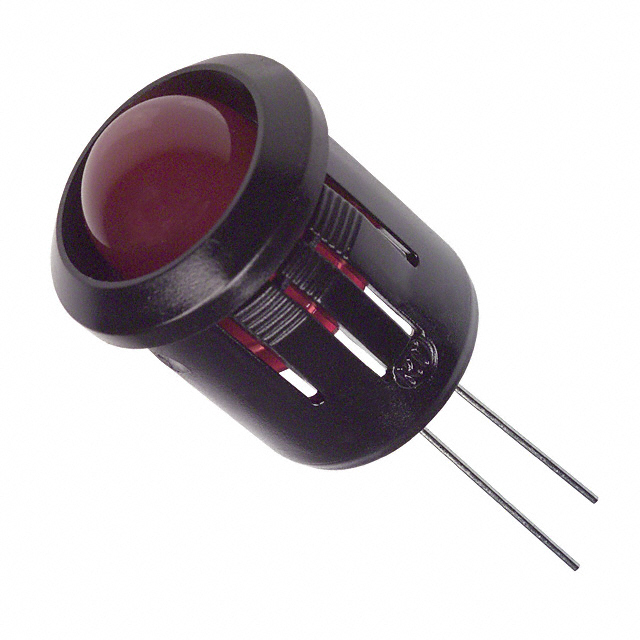

SSI-LXH1090ID

Active

Lumex Opto/Components Inc.

LED 10MM RED PANEL MOUNT

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LED 10MM RED PANEL MOUNT

Technical Specifications

Parameters and characteristics for this part

Part	Wavelength - Peak	Panel Cutout Shape	Lens Style	Voltage	Panel Cutout Dimensions	Panel Cutout Dimensions	Viewing Angle	Lens Size [diameter]	Type	Lamp Color	Lens Color	Millicandela Rating	Current	Lens Transparency	Lens Size	Lens Size
Lumex Opto/Components Inc. SSI-LXH1090SRD	660 nm	Round	Round with Domed Top	1.7 V	13.97 mm	0.55 in	60 °	10 mm	LED	Red	Red	550 mcd	30 mA	Diffused
Lumex Opto/Components Inc. SSI-LXH1090SRD-150	660 nm	Round	Round with Domed Top	1.7 V	13.97 mm	0.55 in	60 °	10 mm	LED	Red	Red	550 mcd	30 mA	Diffused
Lumex Opto/Components Inc. SSI-LXH1090ID	635 nm	Round	Round with Domed Top	2 V	13.97 mm	0.55 in	60 °	10 mm	LED	Red	Red	40 mcd	30 mA	Diffused
Lumex Opto/Components Inc. SSI-LXH1090GD	565 nm	Round	Round with Domed Top	2.2 V	13.97 mm	0.55 in	60 °	10 mm	LED	Green	Green	30 mcd	25 mA	Diffused
Lumex Opto/Components Inc. SSI-LXH1090SID-150	636 nm	Round	Round with Domed Top	2 V	14 mm	0.55 in	60 °		LED	Red	Red	550 mcd		Diffused	T-3 1/8	10 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Panel Indicator Red Diffused 60° 2V 30mA

Technical documentation and resources

No documents available
