3030-50-0103-00

Active

CnC Tech, LLC

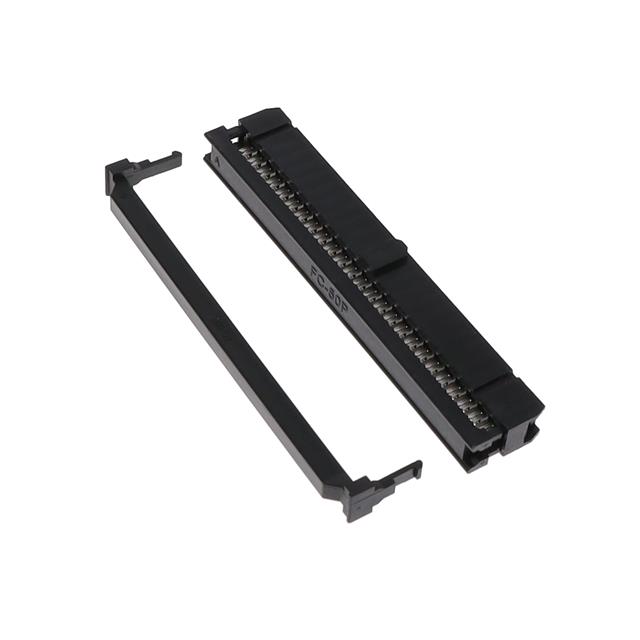

CONN SOCKET 50POS IDC GOLD

Search across all available documentation for this part.

Active

CnC Tech, LLC

CONN SOCKET 50POS IDC GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	3030-50-0103-00

Cable Termination	IDC
Connector Type	Socket
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Type	Female Socket
Features	Feed Through, Polarizing Key, Strain Relief
Mounting Type	Free Hanging (In-Line)
Number of Positions	50
Number of Rows	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in
Wire Type	Ribbon Cable

Part	Mounting Type	Cable Termination	Row Spacing [x]	Row Spacing	Number of Rows	Connector Type	Wire Type	Contact Finish	Features	Number of Positions	Pitch [x]	Pitch [x]	Contact Type	Contact Finish Thickness
CnC Tech, LLC 3030-50-0102-00	Free Hanging (In-Line)	IDC	0.1 in	2.54 mm	2	Socket	Ribbon Cable	Gold	Feed Through Polarizing Key	50	2.54 mm	0.1 in	Female Socket	Flash
CnC Tech, LLC 3030-50-0103-00	Free Hanging (In-Line)	IDC	0.1 in	2.54 mm	2	Socket	Ribbon Cable	Gold	Feed Through Polarizing Key Strain Relief	50	2.54 mm	0.1 in	Female Socket	Flash
CnC Tech, LLC 3030-50-0101-00	Free Hanging (In-Line)	IDC	0.1 in	2.54 mm	2	Socket	Ribbon Cable	Gold	Feed Through	50	2.54 mm	0.1 in	Female Socket	Flash

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

50 Position Rectangular Socket Connector IDC Gold
