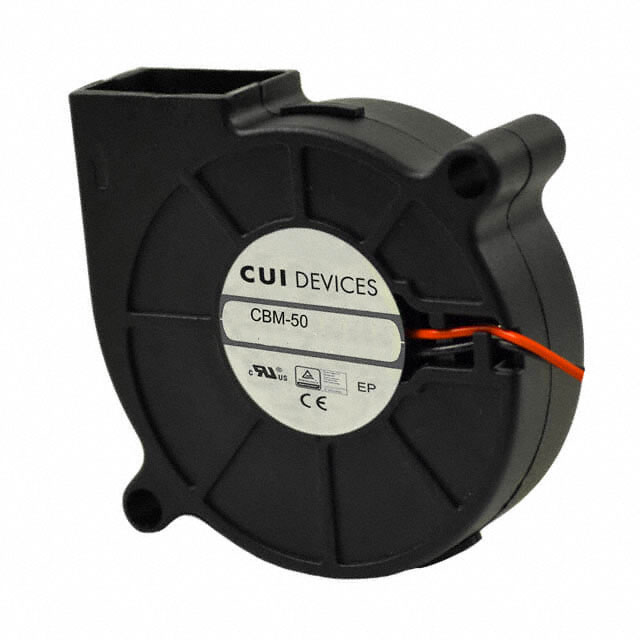

CBM-5015V-140

Obsolete

CUI Devices

FAN BLOWER 51.7X15MM 12VDC WIRE

Search across all available documentation for this part.

Obsolete

CUI Devices

FAN BLOWER 51.7X15MM 12VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	CBM-5015V-140

Air Flow	0.098 mł/min
Air Flow	3.5 CFM
Approval Agency	cURus, CE, TUV
Current Rating (Amps)	0.065 A
Fan Type	Blower
Features	Auto Restart
Lifetime @ Temp.	70000 Hrs
Material - Blade	Polybutylene Terephthalate (PBT)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
RPM	4000 RPM
Size / Dimension	Square/Rounded
Size / Dimension [x]	51.7 mm
Size / Dimension [z]	51.6 mm
Static Pressure	0.4 in H2O
Static Pressure	99.6 Pa
Termination	2 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.8 VDC
Voltage Range [Min]	4.5 V
Weight	30.39 g
Weight	0.067 lb
Width [x]	15 mm

Part	Width [x]	Approval Agency	Features	Air Flow	Air Flow	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Current Rating (Amps)	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]	Voltage Range [Min]	Voltage Range [Max]	Termination	Static Pressure	Static Pressure	Fan Type	Material - Blade	RPM	Weight	Weight	Voltage - Rated	Lifetime @ Temp.	Noise	Power (Watts)
CUI Devices CBM-5015V-160	15 mm	CE cURus TUV	Auto Restart	0.151 mł/min	5.4 CFM	70 °C	70 °C	-10 °C	-10 °C	0.196 A	51.6 mm	Square/Rounded	51.7 mm	4.5 V	13.8 VDC	2 Wire Leads	241.6 Pa	0.97 in H2O	Blower	Polybutylene Terephthalate (PBT)	6000 RPM	30.39 g	0.067 lb	12 VDC	70000 Hrs	42.2 dB(A)	2.36 W
CUI Devices CBM-5015V-140	15 mm	CE cURus TUV	Auto Restart	0.098 mł/min	3.5 CFM	70 °C	70 °C	-10 °C	-10 °C	0.065 A	51.6 mm	Square/Rounded	51.7 mm	4.5 V	13.8 VDC	2 Wire Leads	99.6 Pa	0.4 in H2O	Blower	Polybutylene Terephthalate (PBT)	4000 RPM	30.39 g	0.067 lb	12 VDC	70000 Hrs

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fan Blower 12VDC Square/Rounded - 51.7mm L x 51.6mm H omniCOOL™ Magnetic Sleeve 3.5 CFM (0.098mł/min) 2 Wire Leads
