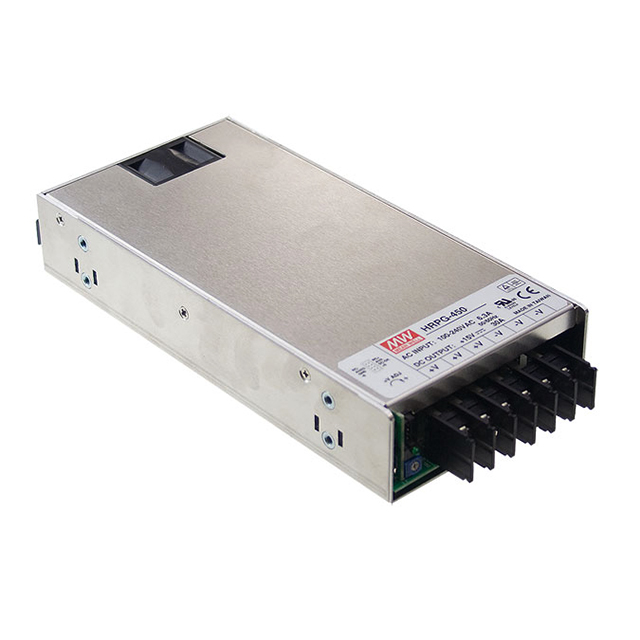

HRPG-450-12
ActiveMEAN WELL USA Inc.
AC/DC CONVERTER 12V 450W
Deep-Dive with AI
Search across all available documentation for this part.
HRPG-450-12
ActiveMEAN WELL USA Inc.
AC/DC CONVERTER 12V 450W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HRPG-450-12 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CB, CE, cURus, TUV |
| Current - Output 1 | 37.5 A |
| Efficiency | 88 % |
| Features | Universal Input, Remote Sense, Remote On/Off, Adjustable Output, PFC |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Power (Watts) | 450 W |
| Size / Dimension [x] | 8.58 " |
| Size / Dimension [x] | 218 mm |
| Size / Dimension [y] | 105 mm |
| Size / Dimension [y] | 4.13 in |
| Size / Dimension [z] | 41 mm |
| Size / Dimension [z] | 1.61 " |
| Type | Enclosed |
| Voltage - Input [Max] | 370 VDC, 264 VAC |
| Voltage - Input [Min] | 85 VAC, 120 VDC |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 145.70 | |
| 5 | $ 138.80 | |||
| 10 | $ 132.70 | |||
| 25 | $ 128.90 | |||
Description
General part information
HRPG-450 Series
Enclosed AC DC Converters 1 Output 12V 85 ~ 264 VAC, 120 ~ 370 VDC Input
