09370240391

Active

HARTING Technology Group

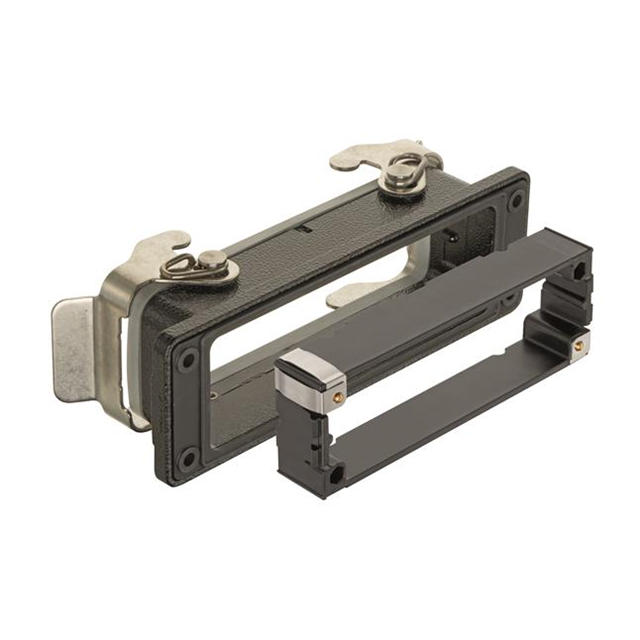

HEAVY DUTY CONNECTOR, BASE, BULKHEAD MOUNT, ALUMINUM BODY, 2 LEVER, 24B

Search across all available documentation for this part.

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, BASE, BULKHEAD MOUNT, ALUMINUM BODY, 2 LEVER, 24B

Technical Specifications

Parameters and characteristics for this part

Part	Size	Lock Location	Style	Housing Material	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Housing Color	Housing Finish	Ingress Protection	Connector Type	Size / Dimension [z]	Size / Dimension [y]	Thread Size	Features
HARTING Technology Group 09370240391	24 B	Locking Clip (2) on Base Bottom	Bottom Entry	Aluminum Die Cast	1.354 in	55 mm	5.732 "	34.4 mm	145.6 mm	2.165 in	125 °C	-40 °C	Black	Powder Coated	IP66	Base - Panel Mount
HARTING Technology Group 09370240271	24 B	Locking Clip (2) on Base Bottom	Side Entry	Aluminum Die Cast	3.181 "		5.669 "		144 mm	2.244 "	125 °C	-40 °C	Black	Powder Coated	IP65 - Dust Tight Water Resistant	Base - Box Mount	80.8 mm	57 mm	PG29	Feed Through
HARTING Technology Group 09370240521	24 B	Locking Clip (2) on Base Bottom	Side Entry	Aluminum Die Cast	2.992 in	43 mm	4.724 "	76 mm	120 mm	1.693 in	125 °C	-40 °C	Black	Epoxy Powder Paint	IP65 - Dust Tight Water Resistant	Hood			PG29
HARTING Technology Group 09370240398	24 B	Locking Clip (1) on Base Bottom	Bottom Entry	Aluminum Die Cast	1.354 in	55 mm	5.732 "	34.4 mm	145.6 mm	2.165 in	125 °C	-40 °C	Black	Powder Coated	IP66	Base - Panel Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Base - Panel Mount Connector Bottom Entry 24B IP66 - Dust Tight, Water Resistant
