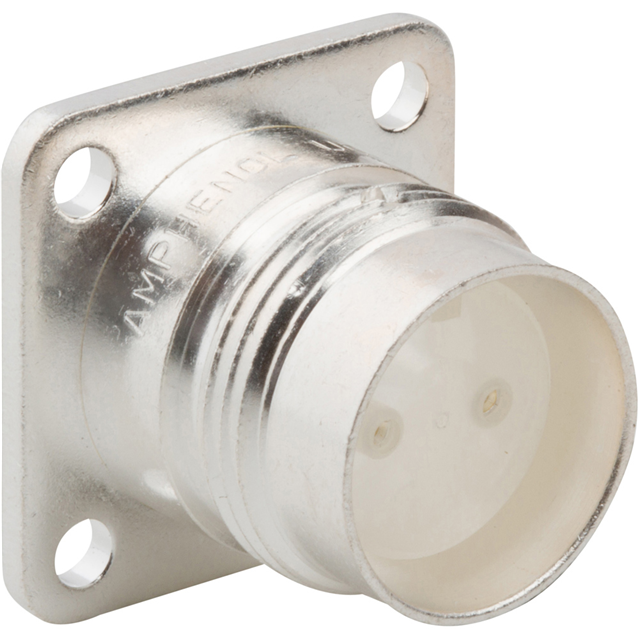

000-6225
ActiveAmphenol RF
UG-422/U TWINAX STRAIGHT PANEL R
Deep-Dive with AI
Search across all available documentation for this part.
000-6225
ActiveAmphenol RF
UG-422/U TWINAX STRAIGHT PANEL R
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 000-6225 |
|---|---|
| Body Finish | Silver |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Silver |
| Connector Style | Twinaxial |
| Connector Type | Female Socket, Jack |
| Contact Termination | Solder Cup |
| Dielectric Material | Copolymer |
| Frequency - Max [Max] | 200 MHz |
| Housing Color | Silver |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Feature | Flange |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Shield Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 250 | $ 63.30 | |
Description
General part information
000-62 Series
Twinaxial Connector Jack, Female Socket 50 Ohms Panel Mount Solder Cup
