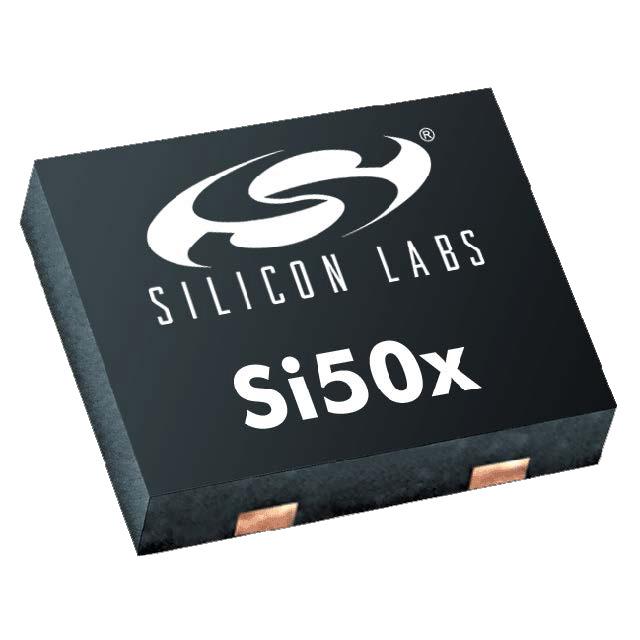

504MBA-BDAF

Obsolete

Silicon Labs

MEMS OSC PROG CMEMS LVCMOS 1.7V

Search across all available documentation for this part.

Obsolete

Silicon Labs

MEMS OSC PROG CMEMS LVCMOS 1.7V

Technical Specifications

Parameters and characteristics for this part

Specification	504MBA-BDAF

Available Frequency Range [Max]	100 MHz
Available Frequency Range [Min]	32 kHz
Base Resonator	MEMS
Current - Supply (Disable) (Max) [Max]	1 ÁA
Current - Supply (Max) [Max]	8.9 mA
Frequency Stability (Total)	▒30ppm
Function	Enable/Disable
Height - Seated (Max) [Max] [z]	0.035 "
Height - Seated (Max) [Max] [z]	0.9 mm
Mounting Type	Surface Mount
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Output	LVCMOS
Package / Case	4-SMD, No Lead
Size / Dimension [x]	0.098 "
Size / Dimension [x]	2.5 mm
Size / Dimension [y]	2 mm
Size / Dimension [y]	0.079 in
Type	CMEMS«
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	1.7 V

Part	Mounting Type	Current - Supply (Disable) (Max) [Max]	Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Supply [Max]	Voltage - Supply [Min]	Output	Package / Case	Frequency Stability (Total)	Available Frequency Range [Max]	Available Frequency Range [Min]	Current - Supply (Max) [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Base Resonator	Operating Temperature [Max]	Operating Temperature [Min]	Function
Silicon Labs 504MBA-BDAF	Surface Mount	1 ÁA	CMEMS«	0.098 "	2 mm	2.5 mm	0.079 in	3.6 V	1.7 V	LVCMOS	4-SMD No Lead	▒30ppm	100 MHz	32 kHz	8.9 mA	0.035 "	0.9 mm	MEMS	70 °C	-20 C	Enable/Disable

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

CMEMS« LVCMOS 32 kHz ~ 100 MHz Programmable Oscillator 1.7V ~ 3.6V Enable/Disable 4-SMD, No Lead
