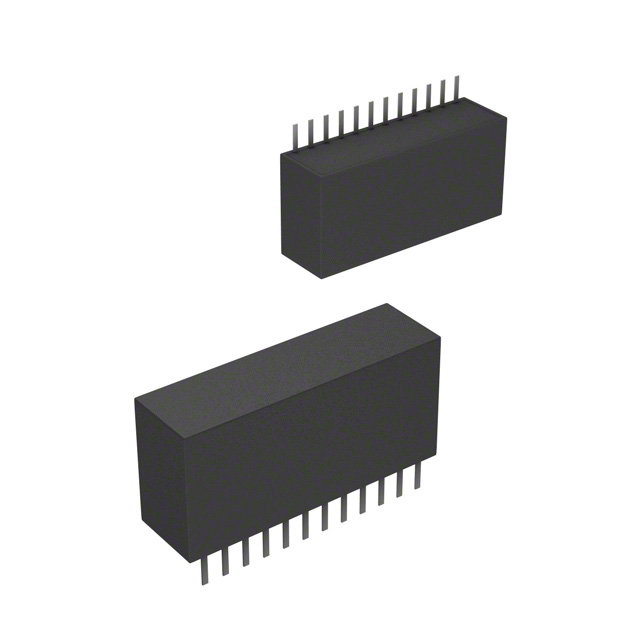

R-521.8PA - R-xxxPA Series

R-521.8PA

Active

RECOM Power

NON-ISOLATED DC/DC CONVERTERS DC/DC REG 4.5-18VIN 1.1-4.5OUT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

R-521.8PA - R-xxxPA Series

R-521.8PA

Active

RECOM Power

NON-ISOLATED DC/DC CONVERTERS DC/DC REG 4.5-18VIN 1.1-4.5OUT

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R-521.8PA

Applications	ITE (Commercial)
Control Features	Active High, Enable
Current - Output (Max) [Max]	2 A
Efficiency	88 %
Features	Remote On/Off, OCP, SCP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	12-SIP Module
Power (Watts)	3.6 W
Size / Dimension [x]	32.2 mm
Size / Dimension [x]	1.27 in
Size / Dimension [y]	9.1 mm
Size / Dimension [y]	0.36 "
Size / Dimension [z]	0.59 in
Size / Dimension [z]	15 mm
Type	Non-Isolated PoL Module
Voltage - Input (Max) [Max]	18 V
Voltage - Input (Min) [Min]	4.5 V
Voltage - Output 1	1.8 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	15	$ 25.86
Sager	N/A	1	$ 26.67
		5	$ 25.81
		10	$ 24.60
		25	$ 23.87
		50	$ 23.53
		100	$ 22.85
		250	$ 21.32

Description

General part information

R-5xxxP_DA Series

Non-Isolated DC/DC Converters DC/DC REG 4.5-18Vin 1.0-3Vout

Documents

Technical documentation and resources

Datasheet

Datasheet

R-5xxxP_DA Series

Non-Isolated DC/DC Converters DC/DC REG 4.5-18Vin 1.0-3Vout

Part	Voltage - Input (Max) [Max]	Voltage - Output 1	Type	Control Features	Power (Watts)	Features	Number of Outputs	Efficiency	Package / Case	Applications	Current - Output (Max) [Max]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Mounting Type	Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]
RECOM Power R-523.3DA	18 V	3.3 V	Non-Isolated PoL Module	Active High Enable	6.6 W	OCP Remote On/Off SCP	1	92 %	12-SIP Module	ITE (Commercial)	2 A	9.1 mm	15 mm	1.27 in	0.59 in	0.36 in	32.2 mm	Through Hole Right Angle	4.5 V	85 °C	-40 °C
RECOM Power R-542.5PA	18 V	2.5 V	Non-Isolated PoL Module	Active High Enable	10 W	OCP Remote On/Off SCP	1	91 %	12-SIP Module	ITE (Commercial)	4 A	15 mm	9.1 mm	1.27 in	0.36 "	0.59 in	32.2 mm	Through Hole	4.5 V	85 °C	-40 °C
RECOM Power R-545.0DA	18 V	5 V	Non-Isolated PoL Module	Active High Enable	20 W	OCP Remote On/Off SCP	1	95 %	12-SIP Module	ITE (Commercial)	4 A	9.1 mm	15 mm	1.27 in	0.59 in	0.36 in	32.2 mm	Through Hole Right Angle	6.5 V	85 °C	-40 °C
RECOM Power R-522.5PA	18 V	2.5 V	Non-Isolated PoL Module	Active High Enable	5 W	OCP Remote On/Off SCP	1	91 %	12-SIP Module	ITE (Commercial)	2 A	15 mm	9.1 mm	1.27 in	0.36 "	0.59 in	32.2 mm	Through Hole	4.5 V	85 °C	-40 °C
RECOM Power R-553.3PA	18 V	3.3 V	Non-Isolated PoL Module	Active High Enable	16.5 W	OCP Remote On/Off SCP	1	92 %	12-SIP Module	ITE (Commercial)	5 A	15 mm	9.1 mm	1.27 in	0.36 "	0.59 in	32.2 mm	Through Hole	4.5 V	85 °C	-40 °C
RECOM Power R-523.3PA	18 V	3.3 V	Non-Isolated PoL Module	Active High Enable	6.6 W	OCP Remote On/Off SCP	1	92 %	12-SIP Module	ITE (Commercial)	2 A	15 mm	9.1 mm	1.27 in	0.36 "	0.59 in	32.2 mm	Through Hole	4.5 V	85 °C	-40 °C
RECOM Power R-521.8PA	18 V	1.8 V	Non-Isolated PoL Module	Active High Enable	3.6 W	OCP Remote On/Off SCP	1	88 %	12-SIP Module	ITE (Commercial)	2 A	15 mm	9.1 mm	1.27 in	0.36 "	0.59 in	32.2 mm	Through Hole	4.5 V	85 °C	-40 °C
