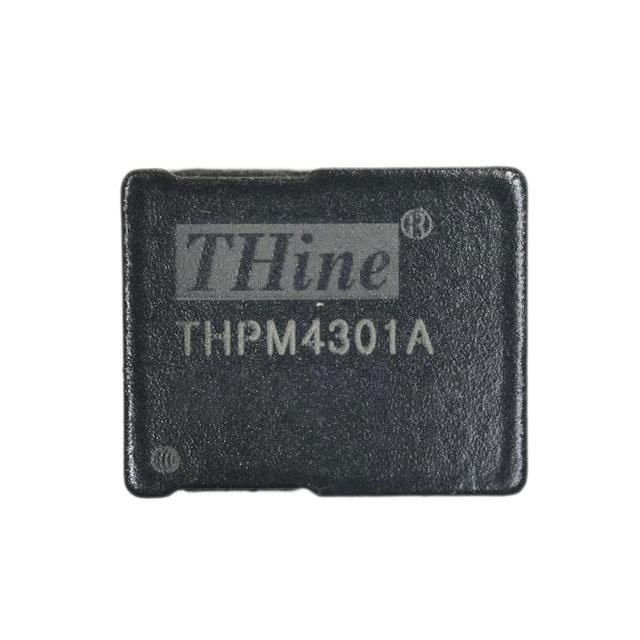

THPM4301A
ActiveCEL
DC DC CONVERTER 0.6-3.6V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
THPM4301A
ActiveCEL
DC DC CONVERTER 0.6-3.6V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | THPM4301A |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 6 A |
| Efficiency | 96 % |
| Features | Adjustable Output |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 56-BLGA Module |
| Size / Dimension [x] | 0.43 " |
| Size / Dimension [x] | 11 mm |
| Size / Dimension [y] | 9.1 mm |
| Size / Dimension [y] | 0.36 " |
| Size / Dimension [z] | 0.11 in |
| Size / Dimension [z] | 2.8 mm |
| Supplier Device Package | 56-LGA (11x9.1) |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 6 V |
| Voltage - Input (Min) [Min] | 2.96 V |
| Voltage - Output 1 [Max] | 3.6 V |
| Voltage - Output 1 [Min] | 0.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 20.66 | |
| 10 | $ 19.06 | |||
| Digi-Reel® | 1 | $ 22.69 | ||
| 10 | $ 16.20 | |||
| Tape & Reel (TR) | 250 | $ 15.52 | ||
| 500 | $ 14.77 | |||
Description
General part information
THPM4301 Series
Non-Isolated PoL Module DC DC Converter 1 Output 0.6 ~ 3.6V 6A 2.96V - 6V Input
