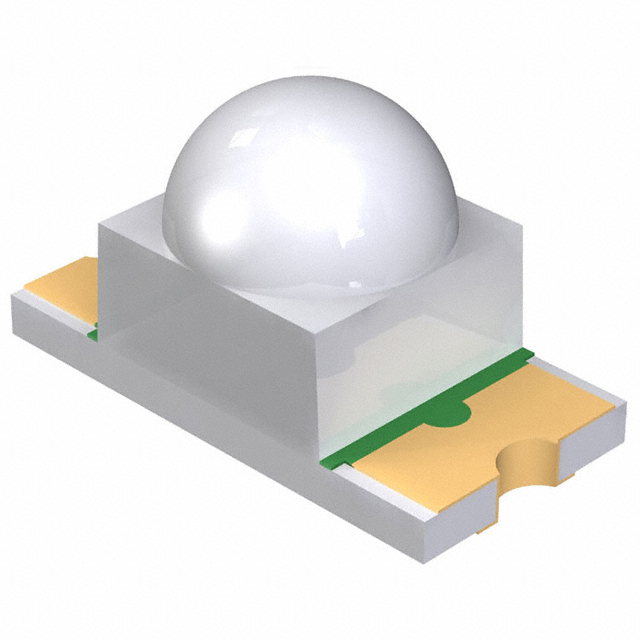

SML-S13VTT86

Active

Rohm Semiconductor

LED RED 3216 SMD

Search across all available documentation for this part.

Active

Rohm Semiconductor

LED RED 3216 SMD

Technical Specifications

Parameters and characteristics for this part

Yellow chip LED with lens, surface/rear mountable

Part	Color	Lens Style	Supplier Device Package	Current - Test	Millicandela Rating	Voltage - Forward (Vf) (Typ)	Lens Size [diameter]	Mounting Type	Wavelength - Dominant	Package / Case	Height (Max) [Max] [z]	Size / Dimension [y]	Size / Dimension [x]	Configuration	Supplier Device Package	Height (Max) [Max]
Rohm Semiconductor SML-S13UTT68	Red	Round with Domed Top	1206	20 mA	700 mcd	1.9 V	1.6 mm	Surface Mount	620 nm	1206 (3216 Metric)	2.05 mm	1.6 mm	3.2 mm
Rohm Semiconductor SML-S13VTT86	Red	Round with Domed Top	3216	20 mA	450 mcd	1.9 V	1.6 mm	Surface Mount	630 nm	1206 (3216 Metric)		1.6 mm	3.2 mm	Standard	1206	1.95 mm
Rohm Semiconductor SML-S13YTT68	Yellow	Round with Domed Top	1206	20 mA	1400 mcd	2 V	1.6 mm	Surface Mount	590 nm	1206 (3216 Metric)	2.05 mm	1.6 mm	3.2 mm
Rohm Semiconductor SML-S13PTT68	Green	Round with Domed Top	1206	20 mA	300 mcd	2 V	1.6 mm	Surface Mount	560 nm	1206 (3216 Metric)	2.05 mm	1.6 mm	3.2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SML-S1 series is a lens-equipped tip LED that can be mounted on both the front and back sides.

Technical documentation and resources

No documents available
