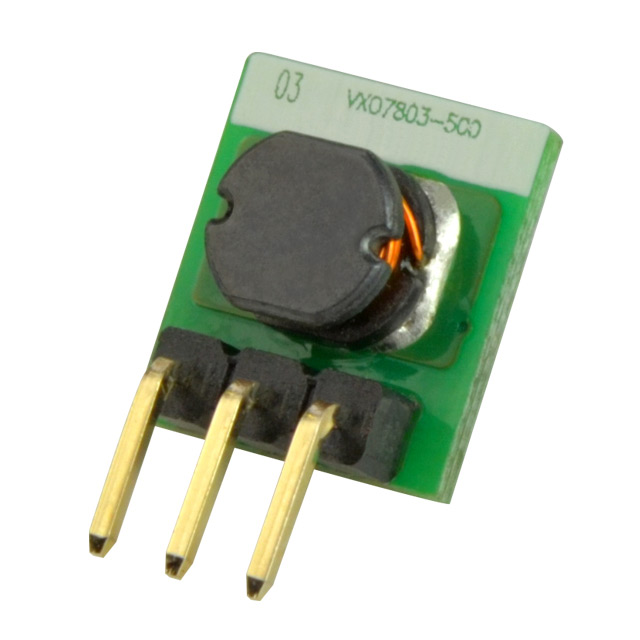

VXO7805-500

CUI Inc.

DC DC CONVERTER 5V OR -5V 2.5W

Search across all available documentation for this part.

CUI Inc.

DC DC CONVERTER 5V OR -5V 2.5W

Technical Specifications

Parameters and characteristics for this part

Specification	VXO7805-500

Applications	ITE (Commercial)
Approval Agency	EN, CB Scheme, UL, IEC
Current - Output (Max) [Max]	500 mA, 300 mA
Efficiency	90 %
Features	SCP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	3-SIP Module
Size / Dimension [x]	0.39 "
Size / Dimension [x]	10 mm
Size / Dimension [y]	7.2 mm
Size / Dimension [y]	0.28 in
Size / Dimension [z]	0.43 "
Size / Dimension [z]	11 mm
Standard Number	55024, 60950-1, 55032 Class A
Type	Linear Regulator Replacement
Voltage - Input (Max)	36 V, 31 V
Voltage - Input (Min) [Min]	7 V, 6.5 V
Voltage - Output 1	5 V

Part	Package / Case	Approval Agency	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max) [Max]	Standard Number	Efficiency	Mounting Type	Applications	Voltage - Input (Max)	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Input (Min) [Min]	Voltage - Output 1	Type	Features
CUI Inc. VXO7805-500	3-SIP Module	CB Scheme EN IEC UL	1	85 °C	-40 °C	300 mA 500 mA	55024 55032 Class A 60950-1	90 %	Through Hole	ITE (Commercial)	31 V 36 V	0.43 "	7.2 mm	0.39 "	11 mm	10 mm	0.28 in	6.5 V 7 V	5 V	Linear Regulator Replacement	SCP

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Linear Regulator Replacement DC DC Converter 1 Output ±5V 500mA or 300mA 6.5V, 7V - 36V, 31V Input
