WI-M-16-25-0

Active

Mueller Electric Co

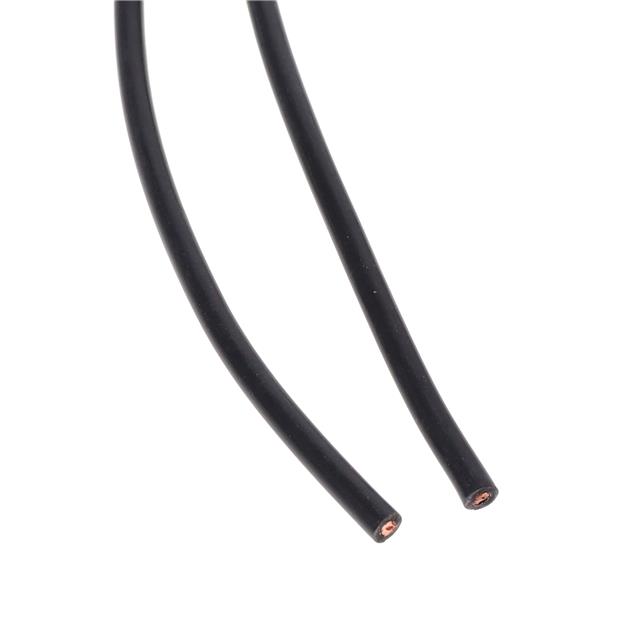

TEST LEAD 16AWG 1100V BLACK 25'

Search across all available documentation for this part.

Active

Mueller Electric Co

TEST LEAD 16AWG 1100V BLACK 25'

Technical Specifications

Parameters and characteristics for this part

Specification	WI-M-16-25-0

Conductor Material	Copper
Conductor Strand [custom]	0.0031 in
Conductor Strand [custom]	266
Jacket (Insulation) Diameter [diameter]	3.2 mm
Jacket (Insulation) Diameter [diameter]	0.126 in
Jacket Color	Black
Length [x]	25 ft
Length [x]	7.62 m
Operating Temperature	200 °C
Voltage	1100 V
Wire Gauge	16 AWG

Part	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket Color	Length	Length	Operating Temperature	Wire Gauge	Voltage	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Material	Length [x]	Length [x]
Mueller Electric Co WI-M-16-10-0	3.2 mm	0.126 in	Black	10 ft	3.05 m	200 °C	16 AWG	1100 V	0.0031 in	266	Copper
Mueller Electric Co WI-M-16-25-0	3.2 mm	0.126 in	Black			200 °C	16 AWG	1100 V	0.0031 in	266	Copper	25 ft	7.62 m
Mueller Electric Co WI-M-16-10-2	3.2 mm	0.126 in	Red	10 ft	3.05 m	200 °C	16 AWG	1100 V	0.0031 in	266	Copper

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

16 AWG Test Lead Wire 266/0.0031" Black 1100V 25.00' (7.62m)
