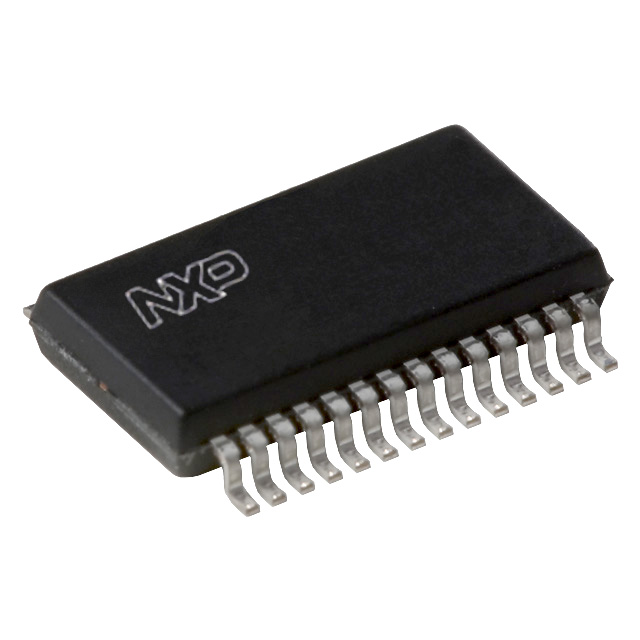

UBA2072TS/N1,518

Obsolete

Freescale Semiconductor - NXP

IC CCFL/EEFL CNTL 46.6KHZ 28SSOP

Search across all available documentation for this part.

Obsolete

Freescale Semiconductor - NXP

IC CCFL/EEFL CNTL 46.6KHZ 28SSOP

Technical Specifications

Parameters and characteristics for this part

Specification	UBA2072TS/N1,518

Current - Supply	5 mA
Dimming	True
Frequency [Max]	46.6 kHz
Frequency [Min]	43 kHz
Mounting Type	Surface Mount
Operating Temperature [custom]	100 °C, -25 °C
Package / Case	28-SSOP
Package / Case [custom]	0.209 in
Package / Case [custom]	5.3 mm
Supplier Device Package	28-SSOP
Type	CCFL/EEFL Controller
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	9 V

Part	Supplier Device Package	Operating Temperature [custom]	Current - Supply	Mounting Type	Dimming	Frequency [Max]	Frequency [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]	Type	Package / Case	Package / Case [x]	Package / Case [y]	Package / Case [custom]	Package / Case [custom]
Freescale Semiconductor - NXP UBA2072T/N1,518	28-SO	-25 °C 100 °C	5 mA	Surface Mount		46.6 kHz	43 kHz	30 VDC	9 V	CCFL/EEFL Controller	28-SOIC	0.295 in	7.5 mm
Freescale Semiconductor - NXP UBA2072TS/N1,518	28-SSOP	-25 °C 100 °C	5 mA	Surface Mount		46.6 kHz	43 kHz	30 VDC	9 V	CCFL/EEFL Controller	28-SSOP			0.209 in	5.3 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

CCFL/EEFL Controller Controller 43kHz ~ 46.6kHz Yes 28-SSOP
