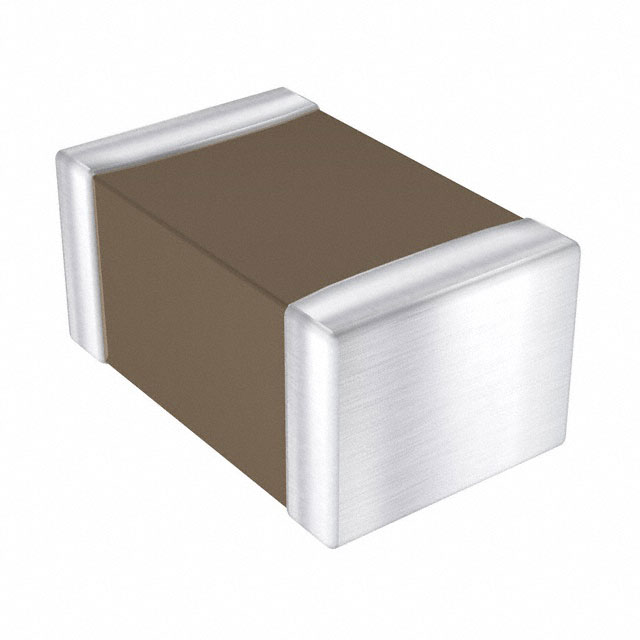

FS055C102KAZ2A

Obsolete

Kyocera AVX

CAP CER 1000PF 50V X7R 0805

Search across all available documentation for this part.

Obsolete

Kyocera AVX

CAP CER 1000PF 50V X7R 0805

Technical Specifications

Parameters and characteristics for this part

Specification	FS055C102KAZ2A

Applications	Boardflex Sensitive, Automotive
Capacitance	0.001 µF
Features	Soft Termination
Mounting Type	Surface Mount, MLCC
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	0805
Ratings	AEC-Q200
Size / Dimension	1.25 mm, 2.01 mm
Size / Dimension [x]	0.079 in
Size / Dimension [y]	0.049 in
Temperature Coefficient	X7R
Thickness (Max) [Max] [custom]	0.94 mm
Thickness (Max) [Max] [custom]	0.037 in
Tolerance	10 %
Voltage - Rated	50 VDC

Part	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension	Size / Dimension [x]	Mounting Type	Voltage - Rated	Thickness (Max) [Max] [custom]	Thickness (Max) [Max] [custom]	Features	Applications	Package / Case	Capacitance	Tolerance	Ratings	Temperature Coefficient
Kyocera AVX FS055C102KAZ2A	-55 °C	125 °C	0.049 in	1.25 mm 2.01 mm	0.079 in	MLCC Surface Mount	50 VDC	0.94 mm	0.037 in	Soft Termination	Automotive Boardflex Sensitive	0805	0.001 µF	10 %	AEC-Q200	X7R
Kyocera AVX KAS21BR71H102KT	-55 °C	125 °C	0.049 in	1.25 mm 2.01 mm	0.079 in	MLCC Surface Mount	50 VDC	0.94 mm	0.037 in	Soft Termination	Automotive Boardflex Sensitive	0805	0.001 µF	10 %	AEC-Q200	X7R
Kyocera AVX KAS21BR71H103KT	-55 °C	125 °C	0.049 in	1.25 mm 2.01 mm	0.079 in	MLCC Surface Mount	50 VDC	0.94 mm	0.037 in	Soft Termination	Automotive Boardflex Sensitive	0805	10000 pF	10 %	AEC-Q200	X7R

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

1000 pF ±10% 50V Ceramic Capacitor X7R 0805 (2012 Metric)
