Technical Specifications
Parameters and characteristics for this part
| Specification | 658AFJ 0041000 |
|---|---|
| Cable Type | Multi-Pair |
| Conductor Insulation | Low Smoke Poly-Vinyl Chloride (LSPVC) |
| Conductor Material | Copper, Bare |
| Conductor Strand [custom] | 7 |
| Conductor Strand [custom] | 30, 26 |
| Features | Rip Cord, Drain Wire |
| Jacket (Insulation) Diameter [diameter] | 11.76 mm |
| Jacket (Insulation) Diameter [diameter] | 0.463 in |
| Jacket (Insulation) Material | Low Smoke Poly-Vinyl Chloride (LSPVC), Plenum |
| Jacket Color | Yellow |
| Length | 1000 ft |
| Length | 304.8 m |
| Number of Conductors | 16 |
| Operating Temperature [Max] | 75 ░C |
| Operating Temperature [Min] | 0 °C |
| Ratings | UL Style CMP |
| Shield Coverage | 100 % |
| Shield Material | Aluminum |
| Shield Type | Foil |
| Voltage | 300 V |
| Wire Gauge | 22 AWG, 18 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1000 | $ 1.48 | |
Description
General part information
658AFJ Series

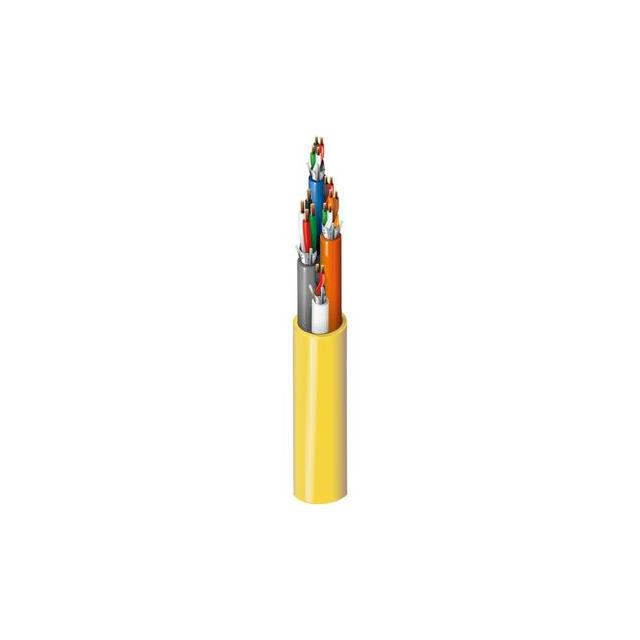

16 (3 Twisted Pairs + 10) Conductor Multi-Pair Cable Yellow 18 AWG, 22 AWG Foil 1000.0' (304.8m)
