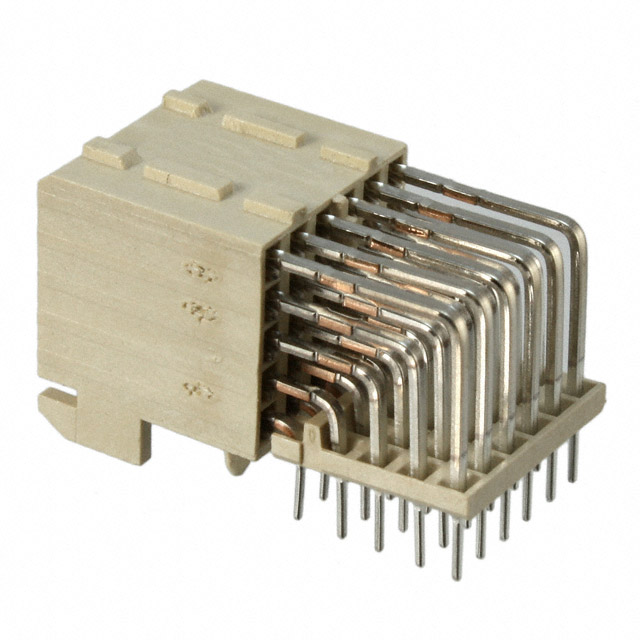

HM1F51TAP000H6LF

Active

Amphenol ICC (FCI)

CONN RCPT 30POS EDGE MNT

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN RCPT 30POS EDGE MNT

Technical Specifications

Parameters and characteristics for this part

Specification	HM1F51TAP000H6LF

Color	Natural
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0.75 µm
Contact Finish Thickness	29.5 µin
Features	Spacer, Board Guide
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Positions	30
Number of Positions Loaded	All
Number of Rows	5
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.079 in
Pitch [x]	2 mm
Termination	Solder
Voltage Rating	1000 VDC

Part	Contact Finish	Mounting Type	Number of Rows	Number of Positions	Voltage Rating	Contact Finish Thickness	Contact Finish Thickness	Current Rating (Amps)	Termination	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Pitch [x]	Pitch [x]	Connector Type	Color	Number of Positions Loaded	Connector Style	Features
Amphenol ICC (FCI) HM1F51TAR000H6LF	Gold	Board Edge Right Angle Through Hole	5	30	1000 VDC	0.75 µm	29.5 µin	1.5 A	Solder	UL94 V-0	85 °C	-55 °C	0.079 in	2 mm	Receptacle Female Sockets	Natural	All	High Speed	Board Guide Spacer
Amphenol ICC (FCI) HM1F51TBP000H6	Gold	Board Edge Right Angle Through Hole	5	30	1000 VDC	0.75 µm	29.5 µin		Solder	UL94 V-0	85 °C	-55 °C	0.079 in	2 mm	Receptacle Female Sockets	Natural	All	High Speed	Board Guide Spacer
Amphenol ICC (FCI) HM1F51FDP000H6PLF	Gold	Board Edge Right Angle Through Hole	5	30	1000 VDC				Press-Fit	UL94 V-0	105 ░C	-55 °C	0.079 in	2 mm	Receptacle Female Sockets	Natural	All		Board Guide Spacer
Amphenol ICC (FCI) HM1F51TAP000H6LF	Gold	Board Edge Right Angle Through Hole	5	30	1000 VDC	0.75 µm	29.5 µin		Solder	UL94 V-0	85 °C	-55 °C	0.079 in	2 mm	Receptacle Female Sockets	Natural	All		Board Guide Spacer
Amphenol ICC (FCI) HM1F51TAP000H6PLF		Board Edge Right Angle Through Hole	5	30					Solder	UL94 V-0			0.079 in	2 mm	Receptacle Female Sockets	Natural	All		Board Guide Spacer
Amphenol ICC (FCI) HM1F51FDP000H6LF	Gold	Board Edge Right Angle Through Hole	5	30		0.76 Ám	30 Áin		Press-Fit	UL94 V-0			0.079 in	2 mm	Receptacle Female Sockets	Natural	All		Board Guide Spacer

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

30 Connector Receptacle, Female Sockets Board Edge, Through Hole, Right Angle Natural
