6-0001-2

Obsolete

Cinch Connectivity Solutions Trompeter

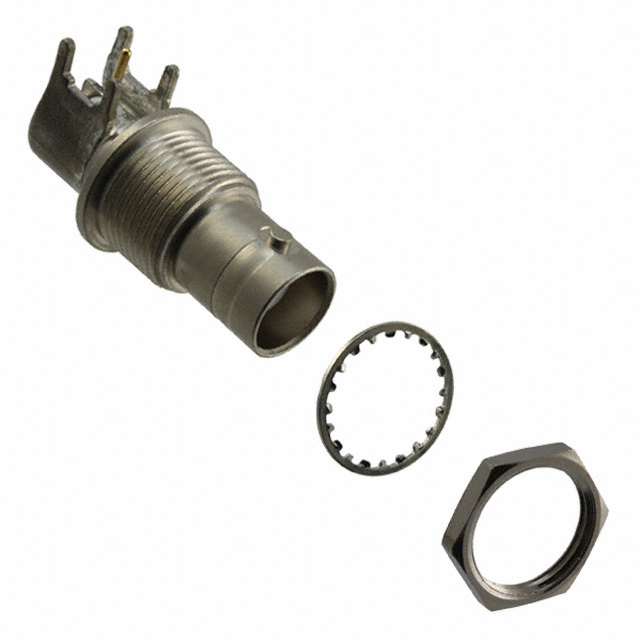

CONN BNC JACK R/A 75 OHM PCB

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	6-0001-2

Body Finish	Tin
Body Material	Brass
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	75 Ohms
Includes	Connector, Washer, Nut
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	500 V

- Series

...

Part	Voltage Rating	Mounting Type	Mounting Feature	Connector Type	Body Material	Number of Ports	Dielectric Material	Includes	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Plating	Body Finish	Impedance	Fastening Type	Frequency - Max [Max]	Housing Color	Contact Termination	Shield Termination	Connector Style	Impedance	Adapter Series	Convert From (Adapter End)	Center Gender	Conversion Type	Convert To (Adapter End)	Adapter Type	Style	Center Contact Material	Mating Cycles	Accessory Type	Color	For Use With/Related Products
Cinch Connectivity Solutions Trompeter 6-0001-2	500 V	Panel Mount Right Angle Through Hole	Bulkhead - Front Side Nut	Female Socket Jack	Brass	1	Polytetrafluoroethylene (PTFE)	Connector Nut Washer	-65 ░C	165 °C	Gold	Tin	75 Ohms	Bayonet Lock	4 GHz	Silver	Solder	Solder	BNC
Cinch Connectivity Solutions Trompeter AD378		Free Hanging (In-Line)										Nickel			500 MHz					Non-Constant	TRB Twinaxial/Triaxial to TRB Twinaxial/Triaxial	TRB Twinaxial/Triaxial (Concentric) Jack Female Socket	Female to Female	Same Series	TRB Twinaxial/Triaxial (Concentric) Jack Female Socket	Jack to Jack	Straight
Cinch Connectivity Solutions Trompeter 28-84707			Bulkhead		Zinc		Polyoxymethylene (POM) Acetal	1 Connector 1 Lockwasher 1 Nut			Gold	Nickel	75 Ohms	Bayonet Lock	2 GHz						BNC to BNC	BNC Jack Female Socket	Female to Female	Same Series	BNC Jack Female Socket	Jack to Jack	Straight	Beryllium Copper
Cinch Connectivity Solutions Trompeter VA603														Bayonet Lock Threaded							BNC to FME	BNC Plug Male Pin	Male to Male	Between Series	FME Plug Male Pin	Plug to Plug	Right Angle
Cinch Connectivity Solutions Trompeter VA205		Free Hanging (In-Line)			Brass		Polyoxymethylene (POM)		-55 °C	85 °C	Gold	Nickel		Bayonet Lock Threaded	300 MHz					Non-Constant		BNC Plug Male Pin		Between Series	Female Socket UHF Jack	Plug to Jack	Straight	Brass	500
Cinch Connectivity Solutions Trompeter AD1W		Free Hanging (In-Line)										Nickel	75 Ohms	Bayonet Lock Push-Pull							BNC to WECo	BNC Jack Female Socket		Between Series	Male Pin Standard Plug WECo	Plug to Jack	Straight
Cinch Connectivity Solutions Trompeter VSR107					Polyvinyl Chloride (PVC)																									Strain Relief	Violet	62 RG-59
Cinch Connectivity Solutions Trompeter VU513			Bulkhead - Rear Side Nut	Female Socket Jack	Brass	1	Polytetrafluoroethylene (PTFE)	1 Connector 1 Lockwasher 1 Nut 1 Solder Tag	-65 ░C	165 °C	Gold	Nickel			300 MHz	Silver	Solder Cup	Solder Tag	UHF	Non-Constant								Brass	500
Cinch Connectivity Solutions Trompeter 3-0347-9			Bulkhead		Brass		Polytetrafluoroethylene (PTFE)	1 Connector 1 Gasket 1 Lockwasher 1 Nut			Gold	Nickel		Bayonet Lock Threaded	500 MHz					Non-Constant	SMA to TRB	TRB Twinaxial/Triaxial Jack Female Socket	Female to Female	Between Series	Female Socket SMA Jack	Jack to Jack	Straight	Beryllium Copper
Cinch Connectivity Solutions Trompeter VTM511	500 V		Bulkhead - Front Side Nut	Female Socket Jack	Zinc Alloy	1	Polypropylene (PP)	1 Connector 1 Lockwasher 1 Nut	-55 °C	85 °C	Gold	Nickel	50 Ohms		11 GHz	Silver	Solder	Solder	TNC									Phosphor Bronze

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

- Series

BNC Connector Jack, Female Socket 75 Ohms Panel Mount, Through Hole, Right Angle Solder
