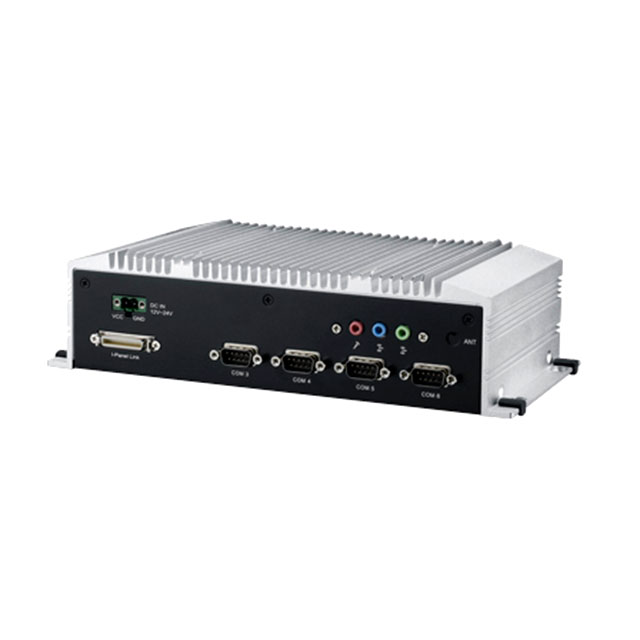

ARK-2120F-S8A1E

Obsolete

Advantech Corp

SBC 1.86GHZ 2 CORE 4GB/0GB RAM

Search across all available documentation for this part.

Obsolete

Advantech Corp

SBC 1.86GHZ 2 CORE 4GB/0GB RAM

Technical Specifications

Parameters and characteristics for this part

Part	USB	Digital I/O Lines	Core Processor	Storage Interface	Ethernet	Ethernet	Speed	Operating Temperature [Max]	Operating Temperature [Min]	Expansion Site/Bus	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Number of Cores	Form Factor	RAM Capacity/Installed	Video Outputs	RS-232 (422, 485)	Power (Watts)	Cooling Type
Advantech Corp ARK-2120L-S8A1E
Advantech Corp ARK-2120F-S6A1E	USB 2.0 (5)	8	Intel Atom N2600	2.5" HDD SATA CFast SSD	(3)	10 Mbps 100 Mbps 1000 Mbps	1.6 GHz	40 °C	0 °C	Full mPCIe	69.2 mm	2.72 in	264.5 mm	10.41 in	2	SO-DIMM	0 GB 4 GB	DP HDMI LVDS VGA	6
Advantech Corp ARK-2120F-S8A1E	USB 2.0 (5)	8	Intel Atom D2550	CompactFlash SSD SATA HDD		10 Mbps 100 Mbps 1000 Mbps	1.86 GHz	60 °C	-20 C	mPCIe	133 mm	5.24 in	264.5 mm	10.41 in	2		0 GB 4 GB	HDMI LVDS VGA	6	9.2 W	Heat Sink

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Single Board Computer 1.86GHz 2 Core 4GB/0GB RAM Intel Atom D2550
