B08B-XADSS-N

Active

JST Sales America Inc.

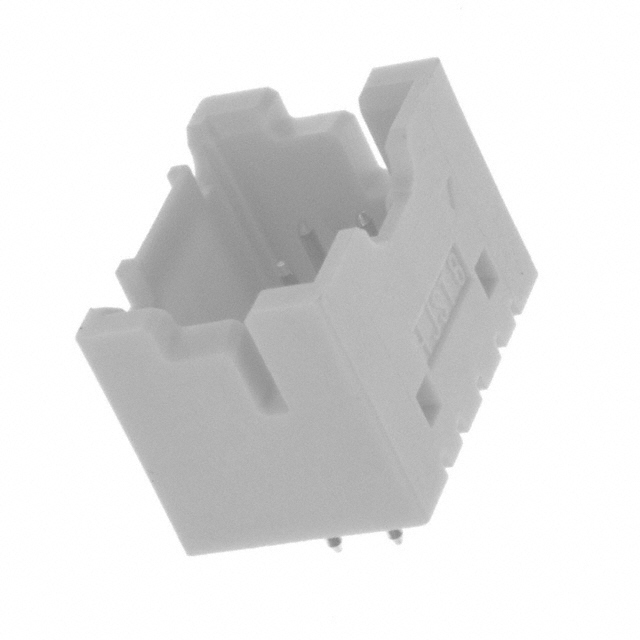

CONN HEADER VERT 8POS 2.5MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER VERT 8POS 2.5MM

Technical Specifications

Parameters and characteristics for this part

Specification	B08B-XADSS-N

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post	3.5 mm
Contact Length - Post	0.138 in
Contact Material	Copper Alloy
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Locking Ramp
Insulation Color	Natural
Insulation Height	10.11 mm
Insulation Height	0.398 in
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Mated Stacking Heights	13.8 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating	2.5 mm
Pitch - Mating	0.098 in
Row Spacing - Mating	0.098 in
Row Spacing - Mating	2.5 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VDC

Part	Number of Rows	Style	Row Spacing - Mating	Row Spacing - Mating	Contact Shape	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Voltage Rating	Material Flammability Rating	Contact Type	Current Rating (Amps)	Number of Positions	Fastening Type	Termination	Contact Length - Post	Contact Length - Post	Insulation Material	Mounting Type	Mated Stacking Heights	Insulation Height	Insulation Height	Number of Positions Loaded	Connector Type	Pitch - Mating	Pitch - Mating	Contact Material	Shrouding	Features
JST Sales America Inc. B08B-XADSS-N	2	Board to Cable/Wire	0.098 in	2.5 mm	Circular	Natural	-25 °C	85 °C	Tin	250 VDC	UL94 V-0	Male Pin	3 A	8	Locking Ramp	Solder	3.5 mm	0.138 in	Polyamide (PA66) Nylon 6/6 Glass Filled	Through Hole	13.8 mm	10.11 mm	0.398 in	All	Header	2.5 mm	0.098 in	Copper Alloy	Shrouded - 4 Wall
JST Sales America Inc. B08B-XADSS-N-A	2	Board to Cable/Wire	0.098 in	2.5 mm	Circular	Natural	-25 °C	85 °C	Tin	250 VDC	UL94 V-0	Male Pin	3 A	8	Locking Ramp	Solder	3.5 mm	0.138 in	Polyamide (PA66) Nylon 6/6 Glass Filled	Through Hole		10.11 mm	0.398 in	All	Header	2.5 mm	0.098 in	Copper Alloy	Shrouded - 4 Wall	Board Guide

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 8 position 0.098" (2.50mm)
