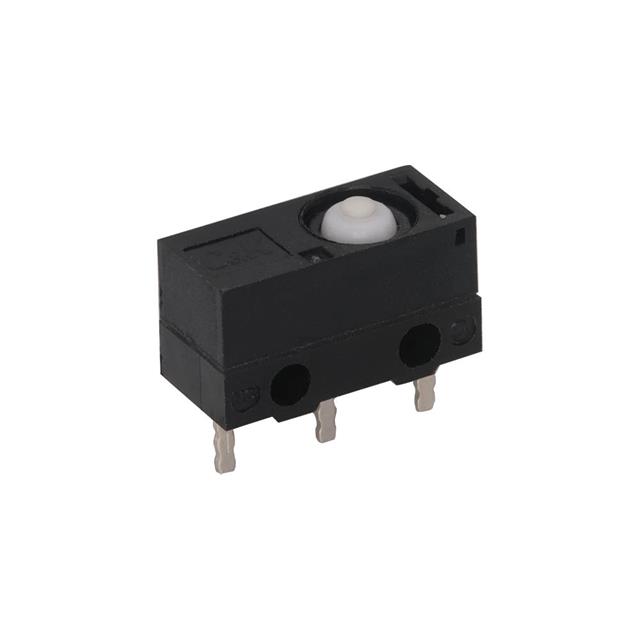

ZMT03ACJP00SCE

Active

Littelfuse/Commercial Vehicle Products

MINI SIZE SEALED SNAP-ACTING SWITCH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet snap +1

ZMT03ACJP00SCE

Active

Littelfuse/Commercial Vehicle Products

MINI SIZE SEALED SNAP-ACTING SWITCH

Deep-Dive with AI

DocumentsDatasheet snap +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ZMT03ACJP00SCE

Actuator Type	Round (Pin Plunger)
Circuit	SPDT
Current Rating (Amps)	3 A
Electrical Life	10000 Cycles
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	1000000 Cycles
Mounting Type	Chassis Mount
Operating Force	170 gf
Operating Position	0.232 in
Operating Position	5.9 mm
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Overtravel	0.2 mm
Overtravel	0.008 in
Pretravel	0.02 in
Pretravel	0.5 mm
Release Force	35 gf
Switch Function	On-Mom
Termination Style	Solder Lug
Voltage Rating - AC	125 V
Voltage Rating - DC	24 V

Zmt0 Series Series

Mini Size Sealed Snap-Acting Switch

Part	Operating Position	Operating Position	Actuator Type	Overtravel	Overtravel	Switch Function	Mechanical Life	Pretravel	Pretravel	Release Force	Current Rating (Amps)	Circuit	Operating Force	Voltage Rating - DC	Mounting Type	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Electrical Life	Termination Style	Operating Position [custom]	Operating Position [custom]	Operating Position [x]	Operating Position [x]
Littelfuse/Commercial Vehicle Products ZMT03ACJS05KCE22	9.1 mm	0.358 in	Lever Simulated Roller	0.026 in	0.7 mm	On-Mom	1000000 Cycles	0.138 in	3.5 mm	7 gf	3 A	SPDT	48 gf	24 V	Chassis Mount	125 V	85 °C	-40 °C	IP67 - Dust Tight Waterproof	10000 Cycles	Wire Leads
Littelfuse/Commercial Vehicle Products ZMT03ACJS05LCE	9.1 mm	0.358 in	Lever Simulated Roller	0.026 in	0.7 mm	On-Mom	1000000 Cycles	0.138 in	3.5 mm	7 gf	3 A	SPDT	48 gf	24 V	Through Hole Right Angle	125 V	85 °C	-40 °C	IP67 - Dust Tight Waterproof	10000 Cycles	PC Pin
Littelfuse/Commercial Vehicle Products ZMT03ACJP00SCE	5.9 mm	0.232 in	Round (Pin Plunger)	0.008 in	0.2 mm	On-Mom	1000000 Cycles	0.02 in	0.5 mm	35 gf	3 A	SPDT	170 gf	24 V	Chassis Mount	125 V	85 °C	-40 °C	IP67 - Dust Tight Waterproof	10000 Cycles	Solder Lug
Littelfuse/Commercial Vehicle Products ZMT03ACJS02JCE22			Lever Simulated Roller	0.024 in	0.6 mm	On-Mom	1000000 Cycles	0.118 in	3 mm	8 gf	3 A	SPDT	50 gf	24 V	Chassis Mount	125 V	85 °C	-40 °C	IP67 - Dust Tight Waterproof	10000 Cycles	Wire Leads	10.1 mm	0.398 in
Littelfuse/Commercial Vehicle Products ZMT05ACJS06JCE20			Lever Simulated Roller	0.01 in	0.25 mm	On-Mom	1000000 Cycles	0.071 in	1.8 mm	12 gf	3 A 5 A	SPDT	65 gf	24 V	Chassis Mount	125 V	85 °C	-40 °C	IP67 - Dust Tight Waterproof	10000 Cycles	Wire Leads	8.5 mm	0.335 in
Littelfuse/Commercial Vehicle Products ZMT03ACJL03RCE			Leaf Lever	0.024 in	0.6 mm	On-Mom	1000000 Cycles	0.134 in	3.4 mm	8 gf	3 A	SPDT	56 gf	24 V	Through Hole Right Angle	125 V	85 °C	-40 °C	IP67 - Dust Tight Waterproof	10000 Cycles	PC Pin			0.28 in	7.1 mm
Littelfuse/Commercial Vehicle Products ZMTG03CJP00PCE	5.9 mm	0.232 in	Round (Pin Plunger)	0.008 in	0.2 mm	On-Mom	1000000 Cycles	0.02 in	0.5 mm	35 gf	3 A	SPDT	170 gf	24 V	Through Hole	125 V	85 °C	-40 °C	IP67 - Dust Tight Waterproof	10000 Cycles	PC Pin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 1.53
		10	$ 1.41
		25	$ 1.33
		50	$ 1.30
		100	$ 1.04

Description

General part information

Zmt0 Series Series

ZMT series sealed snap-acting switches are often found used in automotive interior applications where detect mechanism are required through a snap acting switch. The ZMT is perfect for PCB detection switches, communication devices and various types of testing equipment as well. Featuring a compact size and IP67 sealed (which is ideal when space is limited), the ZMT sealed series give applications a long electrical and mechanical life, ensuring they stand up to repeated use.
