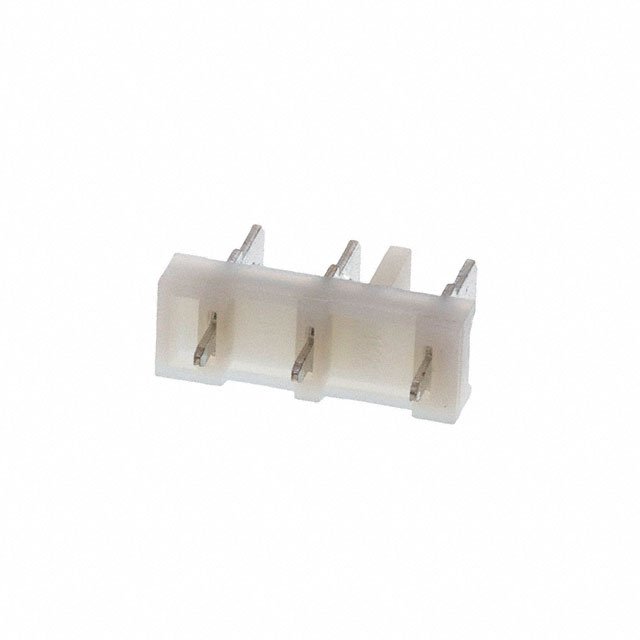

0359600300
ObsoleteMolex
CONN HDR 3POS PCB SLDR
Deep-Dive with AI
Search across all available documentation for this part.
0359600300
ObsoleteMolex
CONN HDR 3POS PCB SLDR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0359600300 |
|---|---|
| Color | Natural |
| Connector Type | Male Blades, Header |
| Contact Finish | Tin |
| Contact Material | Brass |
| Current Rating (Amps) | 25 A |
| Fastening Type | Push-Pull |
| Material - Insulation | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Through Hole |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Termination | Solder |
| Voltage Rating | 300 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
035960 Series
3 Position Header, Male Blades Connector Solder Through Hole
Documents
Technical documentation and resources
No documents available
