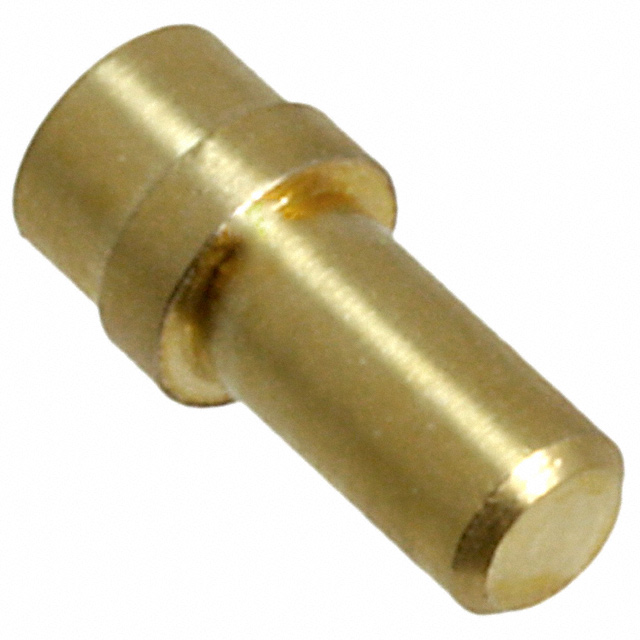

H3182-05 - H3182-05

H3182-05

Active
Harwin Inc.

IC & COMPONENT SOCKET, 1 CONTACTS, PCB SOCKET, H3182 SERIES, BERYLLIUM COPPER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsH3153-011.0mm P.C. Sockets Spec Sheet+3
H3182-05 - H3182-05

H3182-05

Active
Harwin Inc.

IC & COMPONENT SOCKET, 1 CONTACTS, PCB SOCKET, H3182 SERIES, BERYLLIUM COPPER

Deep-Dive with AI

DocumentsH3153-011.0mm P.C. Sockets Spec Sheet+3

Technical Specifications

Parameters and characteristics for this part

SpecificationH3182-05
Accepts Pin Diameter [Max]1.05 mm
Accepts Pin Diameter [Max]0.041 "
Accepts Pin Diameter [Min]0.035 "
Accepts Pin Diameter [Min]0.89 mm
Contact FinishGold
Contact Finish Thickness5.9 µin
Contact Finish Thickness0.15 µm
Contact MaterialBeryllium Copper
Flange Diameter [diameter]2.67 mm
Flange Diameter [diameter]0.105 in
Insertion Force [Max]9 N
Insertion Force [Min]3 N
Length - Overall [x]0.222 in
Length - Overall [x]5.65 mm
Mounting Hole Diameter [Max] [diameter]2.01 mm
Mounting Hole Diameter [Max] [diameter]0.079 in
Mounting Hole Diameter [Min] [diameter]1.91 mm
Mounting Hole Diameter [Min] [diameter]0.075 in
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
Tail TypeNo Tail
TerminationSolder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 0.60
10$ 0.51
25$ 0.48
50$ 0.45
100$ 0.43
250$ 0.41
500$ 0.39
1000$ 0.37
3000$ 0.34

Description

General part information

H3182 Series

Pin Receptacle Connector 0.035" ~ 0.041" (0.89mm ~ 1.05mm) No Tail Solder
