Q-3204S000M072I

Active

Amphenol Custom Cable

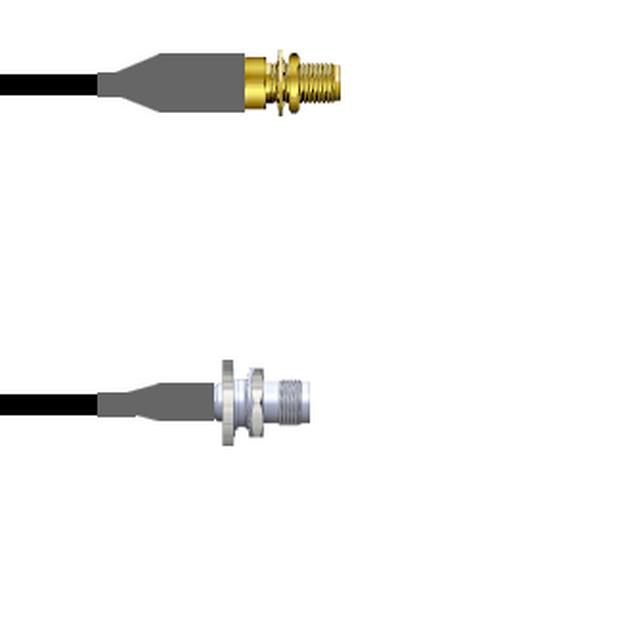

CBL ASSY SMA-TNC JACK-JACK 6'

Deep-Dive with AI

Search across all available documentation for this part.

Q-3204S000M072I

Active

Amphenol Custom Cable

CBL ASSY SMA-TNC JACK-JACK 6'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-3204S000M072I

1st Connector	SMA Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	TNC Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Impedance	50 Ohms
Cable Type	LMR 240
Color	Black
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length	6 ft
Length	72 in
Length	1.8 m
Overall Impedance	50 Ohms
Style	SMA to TNC

Q-3204S0 Series

Part	Frequency - Max [Max]	2nd Connector Mounting Feature	1st Connector Mounting Type	2nd Contact Gender	Overall Impedance	2nd Connector Mounting Type	Cable Impedance	Features	1st Contact Gender	Connector Impedance	Length	Length	Length	Color	Style	2nd Connector	1st Connector	1st Connector Mounting Feature	Cable Type	Length [x]	Length [x]
Amphenol Custom Cable Q-3204S000M084I	6000 MHz	Bulkhead - Front Side Nut	Panel Mount	Female	50 Ohms	Panel Mount	50 Ohms	Shielded	Female	50 Ohms	84 in	2.1 m	7 ft	Black	SMA to TNC	TNC Jack	SMA Jack	Bulkhead - Front Side Nut	LMR 240
Amphenol Custom Cable Q-3204S000M018I	6000 MHz	Bulkhead - Front Side Nut	Panel Mount	Female	50 Ohms	Panel Mount	50 Ohms	Shielded	Female	50 Ohms				Black	SMA to TNC	TNC Jack	SMA Jack	Bulkhead - Front Side Nut	LMR 240	457.2 mm	457.2 mm
Amphenol Custom Cable Q-3204S000M060I	6000 MHz	Bulkhead - Front Side Nut	Panel Mount	Female	50 Ohms	Panel Mount	50 Ohms	Shielded	Female	50 Ohms	5 '	1.5 m	5 ft	Black	SMA to TNC	TNC Jack	SMA Jack	Bulkhead - Front Side Nut	LMR 240
Amphenol Custom Cable Q-3204S000M001M	6000 MHz	Bulkhead - Front Side Nut	Panel Mount	Female	50 Ohms	Panel Mount	50 Ohms	Shielded	Female	50 Ohms	39.4 in	1 m	3.3 ft	Black	SMA to TNC	TNC Jack	SMA Jack	Bulkhead - Front Side Nut	LMR 240
Amphenol Custom Cable Q-3204S000M048I	6000 MHz	Bulkhead - Front Side Nut	Panel Mount	Female	50 Ohms	Panel Mount	50 Ohms	Shielded	Female	50 Ohms	48 in	1200 mm	4 ft	Black	SMA to TNC	TNC Jack	SMA Jack	Bulkhead - Front Side Nut	LMR 240
Amphenol Custom Cable Q-3204S000M036I	6000 MHz	Bulkhead - Front Side Nut	Panel Mount	Female	50 Ohms	Panel Mount	50 Ohms	Shielded	Female	50 Ohms	36 in	91.44 cm		Black	SMA to TNC	TNC Jack	SMA Jack	Bulkhead - Front Side Nut	LMR 240
Amphenol Custom Cable Q-3204S000M072I	6000 MHz	Bulkhead - Front Side Nut	Panel Mount	Female	50 Ohms	Panel Mount	50 Ohms	Shielded	Female	50 Ohms	72 in	1.8 m	6 ft	Black	SMA to TNC	TNC Jack	SMA Jack	Bulkhead - Front Side Nut	LMR 240
Amphenol Custom Cable Q-3204S000M012I	6000 MHz	Bulkhead - Front Side Nut	Panel Mount	Female	50 Ohms	Panel Mount	50 Ohms	Shielded	Female	50 Ohms	12 "	304.8 mm		Black	SMA to TNC	TNC Jack	SMA Jack	Bulkhead - Front Side Nut	LMR 240
Amphenol Custom Cable Q-3204S000M.75M	6000 MHz	Bulkhead - Front Side Nut	Panel Mount	Female	50 Ohms	Panel Mount	50 Ohms	Shielded	Female	50 Ohms	29.53 "	750 mm		Black	SMA to TNC	TNC Jack	SMA Jack	Bulkhead - Front Side Nut	LMR 240
Amphenol Custom Cable Q-3204S000M002M	6000 MHz	Bulkhead - Front Side Nut	Panel Mount	Female	50 Ohms	Panel Mount	50 Ohms	Shielded	Female	50 Ohms	78.7 in	2 m	6.6 ft	Black	SMA to TNC	TNC Jack	SMA Jack	Bulkhead - Front Side Nut	LMR 240

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 161.84
		25	$ 160.47
		50	$ 159.10
		100	$ 157.73
		250	$ 156.36

Description

General part information

Q-3204S0 Series

Cable Assembly Coaxial SMA to TNC LMR 240 72.0" (1.8m) 6.0'

Documents

Technical documentation and resources

No documents available
