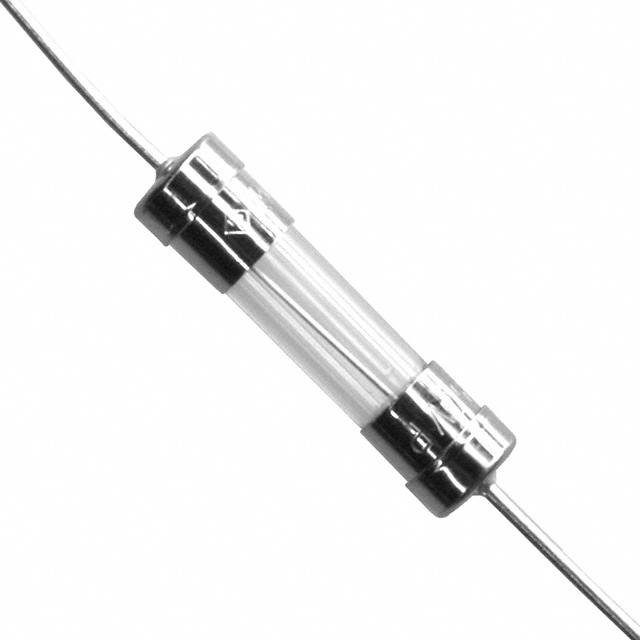

0232010.MXEP
ActiveLittelfuse/Commercial Vehicle Products
ELECTRIC FUSE, MEDIUM BLOW, 10A, 250VAC, 100A (IR), THROUGH HOLE, ROHS COMPLIANT
Deep-Dive with AI
Search across all available documentation for this part.
0232010.MXEP
ActiveLittelfuse/Commercial Vehicle Products
ELECTRIC FUSE, MEDIUM BLOW, 10A, 250VAC, 100A (IR), THROUGH HOLE, ROHS COMPLIANT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0232010.MXEP |
|---|---|
| Breaking Capacity @ Rated Voltage | 100 A |
| Current Rating (Amps) | 10 A |
| DC Cold Resistance | 0.0059 Ohms |
| Melting I²t | 290.665 I²t |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case [x] | 5 mm |
| Package / Case [y] | 20 mm |
| Response Time | Medium Blow |
| Size / Dimension [diameter] | 5.8 mm |
| Size / Dimension [diameter] | 0.228 in |
| Size / Dimension [z] | 22.5 mm |
| Size / Dimension [z] | 0.886 " |
| Voltage Rating - AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.77 | |
| 5 | $ 1.46 | |||
| 10 | $ 1.35 | |||
| 50 | $ 1.12 | |||
| 100 | $ 1.03 | |||
| 250 | $ 0.93 | |||
| 500 | $ 0.86 | |||
| 1000 | $ 0.79 | |||
| 5000 | $ 0.72 | |||
Description
General part information
0232010 Series
5X20mm medium-acting glass body cartridge fuse designed to Meti B Standard.
