500SAAC49M1520ACF

Obsolete

Skyworks Solutions Inc.

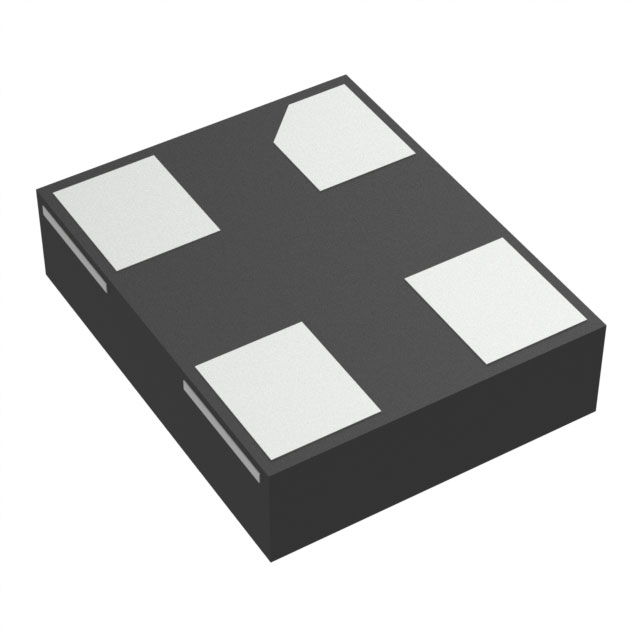

XTAL OSC XO 49.1520MHZ CMOS SMD

Search across all available documentation for this part.

Obsolete

Skyworks Solutions Inc.

XTAL OSC XO 49.1520MHZ CMOS SMD

Technical Specifications

Parameters and characteristics for this part

Specification	500SAAC49M1520ACF

Base Resonator	Crystal
Current - Supply (Disable) (Max) [Max]	1.9 mA
Current - Supply (Max) [Max]	24 mA
Frequency	49.152 MHz
Frequency Stability	10 ppm
Function	Standby (Power Down)
Height - Seated (Max) [Max] [z]	0.035 "
Height - Seated (Max) [Max] [z]	0.9 mm
Mounting Type	Surface Mount
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Output	CMOS
Package / Case	4-SMD, No Lead
Size / Dimension [x]	0.157 "
Size / Dimension [x]	4 mm
Size / Dimension [y]	3.2 mm
Size / Dimension [y]	0.126 "
Type	XO (Standard)
Voltage - Supply	3.3 V

Part	Current - Supply (Disable) (Max) [Max]	Frequency Stability	Voltage - Supply	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Base Resonator	Type	Package / Case	Current - Supply (Max) [Max]	Mounting Type	Operating Temperature [Max]	Function	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Output	Frequency
Skyworks Solutions Inc. 500SAAA48M0000ACFR	10.7 mA	10 ppm	3.3 V	0.035 "	0.9 mm	Crystal	XO (Standard)	4-SMD No Lead	24 mA	Surface Mount	70 °C	Enable/Disable	3.2 mm	0.157 "	0.126 "	4 mm	CMOS	48 MHz
Skyworks Solutions Inc. 500SAAD5M53000ACFR	1.9 mA	10 ppm	3.3 V	0.035 "	0.9 mm	Crystal	XO (Standard)	4-SMD No Lead	24 mA	Surface Mount	70 °C	Standby (Power Down)	3.2 mm	0.157 "	0.126 "	4 mm	CMOS	5.53 MHz
Skyworks Solutions Inc. 500SAAA16M0000ACFR	10.7 mA	10 ppm	3.3 V	0.035 "	0.9 mm	Crystal	XO (Standard)	4-SMD No Lead	24 mA	Surface Mount	70 °C	Enable/Disable	3.2 mm	0.157 "	0.126 "	4 mm	CMOS	16 MHz
Skyworks Solutions Inc. 500SAAA8M00000ACFR	10.7 mA	10 ppm	3.3 V	0.035 "	0.9 mm	Crystal	XO (Standard)	4-SMD No Lead	24 mA	Surface Mount	70 °C	Enable/Disable	3.2 mm	0.157 "	0.126 "	4 mm	CMOS	8 MHz
Skyworks Solutions Inc. 500SAAA25M0000ACFR	10.7 mA	10 ppm	3.3 V	0.035 "	0.9 mm	Crystal	XO (Standard)	4-SMD No Lead	24 mA	Surface Mount	70 °C	Enable/Disable	3.2 mm	0.157 "	0.126 "	4 mm	CMOS	25 MHz
Skyworks Solutions Inc. 500SAAC49M1520ACF	1.9 mA	10 ppm	3.3 V	0.035 "	0.9 mm	Crystal	XO (Standard)	4-SMD No Lead	24 mA	Surface Mount	70 °C	Standby (Power Down)	3.2 mm	0.157 "	0.126 "	4 mm	CMOS	49.152 MHz
