MS3114E14-19P

Active

Amphenol Industrial Operations

MIL-26482 MS/PT/CMB RECEPT

Search across all available documentation for this part.

Active

Amphenol Industrial Operations

MIL-26482 MS/PT/CMB RECEPT

Technical Specifications

Parameters and characteristics for this part

Specification	MS3114E14-19P

Applications	Communication Systems, Industrial, Instrumentation, Aerospace, Mass Transit, Military
Color	Olive Drab
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	7.5 A
Fastening Type	Bayonet Lock
Grade	Military
Ingress Protection	Environment Resistant
Insert Material	Neoprene
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	19
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-26482 Series I
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert [Max] [custom]	19
Shell Size - Insert [Min] [custom]	14
Shielding	Unshielded
Voltage Rating	600 VAC

Part	Color	Insert Material	Shielding	Primary Material	Contact Material	Ingress Protection	Connector Type	Grade	Contact Finish - Mating	Mounting Feature	Qualification	Orientation	Shell Finish	Operating Temperature [Min]	Operating Temperature [Max]	Shell Material	Features	Shell Size - Insert	Backshell Material, Plating	Applications	Fastening Type	Voltage Rating	Number of Positions	Current Rating (Amps)	Shell Size - Insert [Max] [custom]	Shell Size - Insert [Min] [custom]
Amphenol Industrial Operations MS3114E14-5P	Olive Drab	Neoprene	Unshielded	Metal	Copper Alloy	Environment Resistant	Male Pins Receptacle	Military	Gold	Bulkhead - Front Side Nut	MIL-DTL-26482 Series I	N	Olive Drab Chromate over Cadmium	-55 °C	125 °C	Aluminum	Backshell	14-5	Aluminum Olive Drab Chromate over Cadmium	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	Bayonet Lock
Amphenol Industrial Operations MS3114E14-19P	Olive Drab	Neoprene	Unshielded	Metal	Copper Alloy	Environment Resistant	Male Pins Receptacle	Military	Gold	Bulkhead - Front Side Nut	MIL-DTL-26482 Series I	N	Olive Drab Chromate over Cadmium	-55 °C	125 °C	Aluminum Alloy				Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	Bayonet Lock	600 VAC	19	7.5 A	19	14

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

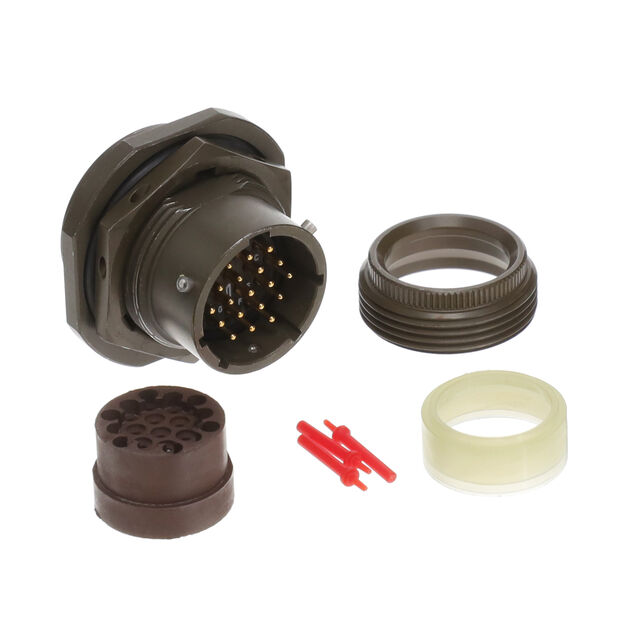

19 Position Circular Connector Receptacle, Male Pins Solder Cup
