SNP1GHS0C2

Active

HELLERMANNTYTON

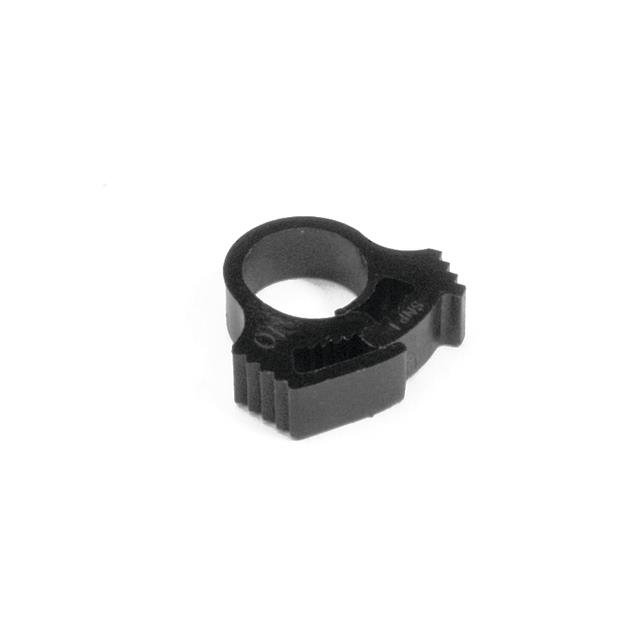

FASTENER, RELEASABLE, SNAPPER HOSE CLAMP, 6 MM, NYLON 6.6 (POLYAMIDE 6.6), GLASS FILLED, BLACK

Search across all available documentation for this part.

Active

HELLERMANNTYTON

FASTENER, RELEASABLE, SNAPPER HOSE CLAMP, 6 MM, NYLON 6.6 (POLYAMIDE 6.6), GLASS FILLED, BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	SNP1GHS0C2

Color	Black
Features	Impact Resistant, Heat Stabilized
Length [Max] [x]	11.58 mm
Length [Max] [x]	0.456 in
Length [Min] [x]	8.2 mm
Length [Min] [x]	0.323 in
Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Material Flammability Rating	UL94 HB
Material Thickness	0.04 in
Material Thickness	1.02 mm
Opening Size [Max] [z]	6.65 mm
Opening Size [Max] [z]	0.262 in
Opening Size [Min] [z]	0.233 in
Opening Size [Min] [z]	5.92 mm
Type	Clamp, Hose
Type Attributes	Push-Fit
Width	3.78 mm
Width	0.149 in

Part	Opening Size [Max] [z]	Opening Size [Max] [z]	Opening Size [Min] [z]	Opening Size [Min] [z]	Material	Type	Material Flammability Rating	Type Attributes	Color	Width	Width	Length [Min] [x]	Length [Max] [x]	Length [Min] [x]	Length [Max] [x]	Features	Material Thickness	Material Thickness
HELLERMANNTYTON SNP1GHS0C2	6.65 mm	0.262 in	0.233 in	5.92 mm	Polyamide (PA66) Nylon 6/6 Glass Filled	Clamp Hose	UL94 HB	Push-Fit	Black	3.78 mm	0.149 in	8.2 mm	11.58 mm	0.323 in	0.456 in	Heat Stabilized Impact Resistant	0.04 in	1.02 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Clamp, Hose Black 0.233" ~ 0.262" (5.92mm ~ 6.65mm)

Technical documentation and resources
