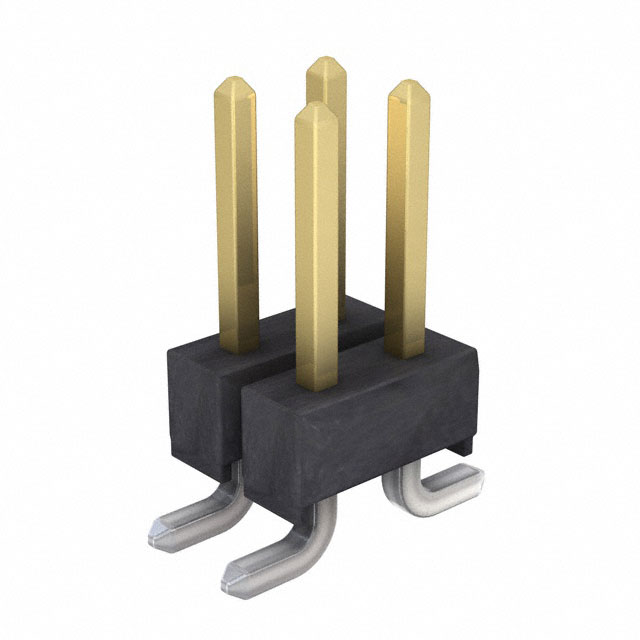

M20-8750242R

Active

Harwin Inc.

BOARD CONNECTOR, 4 CONTACT(S), 2 ROW(S), MALE, STRAIGHT, 0.1 INCH PITCH, SURFACE MOUNT TERMINAL, LOCKING,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM20 Series Spec Sheet M20-003 +1

M20-8750242R

Active

Harwin Inc.

BOARD CONNECTOR, 4 CONTACT(S), 2 ROW(S), MALE, STRAIGHT, 0.1 INCH PITCH, SURFACE MOUNT TERMINAL, LOCKING,

Deep-Dive with AI

DocumentsM20 Series Spec Sheet M20-003 +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M20-8750242R

Connector Type	Breakaway, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Mating	0.228 in
Contact Length - Mating	5.8 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Features	Board Guide
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Polyamide (PA6T), Glass Filled, Nylon 6T
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

M20-875 Series

Part	Fastening Type	Current Rating (Amps)	Contact Type	Number of Rows	Insulation Material	Contact Material	Pitch - Mating	Pitch - Mating	Insulation Color	Features	Contact Finish Thickness - Mating	Style	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Number of Positions Loaded	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Mating	Contact Length - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Shape	Shrouding	Contact Finish - Mating	Connector Type	Termination	Mounting Type	Material Flammability Rating	Number of Positions
Harwin Inc. M20-8750442	Push-Pull	3 A	Male Pin	2	Glass Filled Nylon 6T Polyamide (PA6T)	Brass	0.1 in	2.54 mm	Black	Board Guide	Flash	Board to Board Cable	Tin	-40 °C	105 ░C	0.1 in	2.54 mm	All	2.54 µm	100 µin	0.228 in	5.8 mm	2.54 mm	0.1 in	Square	Unshrouded	Gold	Breakaway Header	Solder	Surface Mount	UL94 V-0	8
Harwin Inc. M20-8750242R	Push-Pull	3 A	Male Pin	2	Glass Filled Nylon 6T Polyamide (PA6T)	Brass	0.1 in	2.54 mm	Black	Board Guide	Flash	Board to Board Cable	Tin	-40 °C	105 ░C	0.1 in	2.54 mm	All	2.54 µm	100 µin	0.228 in	5.8 mm	2.54 mm	0.1 in	Square	Unshrouded	Gold	Breakaway Header	Solder	Surface Mount	UL94 V-0	4
Harwin Inc. M20-8750342	Push-Pull	3 A	Male Pin	2	Glass Filled Nylon 6T Polyamide (PA6T)	Brass	0.1 in	2.54 mm	Black	Board Guide	Flash	Board to Board Cable	Tin	-40 °C	105 ░C	0.1 in	2.54 mm	All	2.54 µm	100 µin	0.228 in	5.8 mm	2.54 mm	0.1 in	Square	Unshrouded	Gold	Breakaway Header	Solder	Surface Mount	UL94 V-0	6
Harwin Inc. M20-8751042R	Push-Pull	3 A	Male Pin	2	Glass Filled Nylon 6T Polyamide (PA6T)	Brass	0.1 in	2.54 mm	Black	Board Guide	Flash	Board to Board Cable	Tin	-40 °C	105 ░C	0.1 in	2.54 mm	All	2.54 µm	100 µin	0.228 in	5.8 mm	2.54 mm	0.1 in	Square	Unshrouded	Gold	Breakaway Header	Solder	Surface Mount	UL94 V-0	20
Harwin Inc. M20-8750542	Push-Pull	3 A	Male Pin	2	Glass Filled Nylon 6T Polyamide (PA6T)	Brass	0.1 in	2.54 mm	Black	Board Guide	Flash	Board to Board Cable	Tin	-40 °C	105 ░C	0.1 in	2.54 mm	All	2.54 µm	100 µin	0.228 in	5.8 mm	2.54 mm	0.1 in	Square	Unshrouded	Gold	Breakaway Header	Solder	Surface Mount	UL94 V-0	10
Harwin Inc. M20-8750342R	Push-Pull	3 A	Male Pin	2	Glass Filled Nylon 6T Polyamide (PA6T)	Brass	0.1 in	2.54 mm	Black	Board Guide	Flash	Board to Board Cable	Tin	-40 °C	105 ░C	0.1 in	2.54 mm	All	2.54 µm	100 µin	0.228 in	5.8 mm	2.54 mm	0.1 in	Square	Unshrouded	Gold	Breakaway Header	Solder	Surface Mount	UL94 V-0	6

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.03
		10	$ 0.87
		100	$ 0.78
	Digi-Reel®	1	$ 1.03
		10	$ 0.87
		100	$ 0.78
	Tape & Reel (TR)	300	$ 0.65
		600	$ 0.60
		900	$ 0.58
		1500	$ 0.55
		2100	$ 0.53
		3000	$ 0.51
		7500	$ 0.47
		15000	$ 0.44
Newark	Each (Supplied on Full Reel)	800	$ 0.61
		1600	$ 0.56
