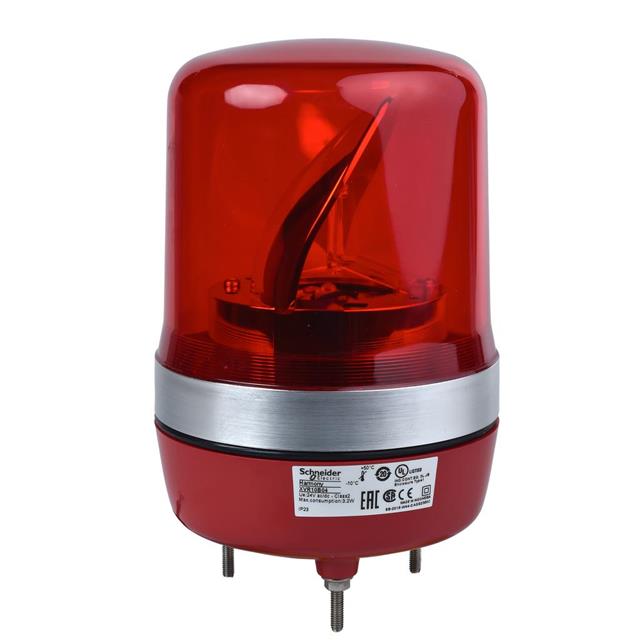

XVR10B04

Active

SQUARE D BY SCHNEIDER ELECTRIC

BEACON, RED, ROTATING, 3W, 24VDC 24VAC, IP23, 106MM DIA., 155MM EXT. DEPTH

Search across all available documentation for this part.

Active

SQUARE D BY SCHNEIDER ELECTRIC

BEACON, RED, ROTATING, 3W, 24VDC 24VAC, IP23, 106MM DIA., 155MM EXT. DEPTH

Technical Specifications

Parameters and characteristics for this part

Specification	XVR10B04

Function - Lighting	Rotating
Ingress Protection	IP23
Light Color	Red
Number of Stacks	1
Operating Temperature [Max] [custom]	50 °C
Operating Temperature [Min] [custom]	-10 °C
Termination Style	Cable Leads
Type	Complete Unit
Voltage - Supply	24 VAC
Weight	499 g
Weight	1.1 lbs

Part	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Weight	Weight	Termination Style	Number of Stacks	Light Color	Voltage - Supply	Type	Ingress Protection	Function - Lighting
SQUARE D BY SCHNEIDER ELECTRIC XVR10B04	-10 °C	50 °C	499 g	1.1 lbs	Cable Leads	1	Red	24 VAC	Complete Unit	IP23	Rotating
SQUARE D BY SCHNEIDER ELECTRIC XVR10B05	-10 °C	50 °C	499 g	1.1 lbs	Screw Terminal	1	Orange	24 VAC	Complete Unit	IP23	Flashing Rotating

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

The XVR10B04 is a prewired rotating Mirror Beacon made with ABS body and PMMA globe.
