0022474033

Active

Molex

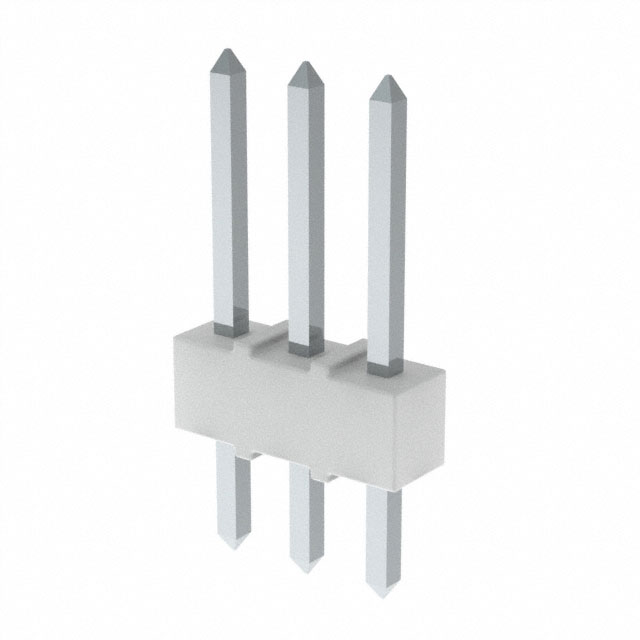

CONN UNSHROUDED HEADER HDR 3 POS 2.54MM SOLDER ST TOP ENTRY THRU-HOLE KK BULK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

0022474033

Active

Molex

CONN UNSHROUDED HEADER HDR 3 POS 2.54MM SOLDER ST TOP ENTRY THRU-HOLE KK BULK

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0022474033

Applications	Medical, General Purpose, Automotive, Telecommunications
Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	60 Áin
Contact Finish Thickness - Mating	1.52 Ám
Contact Finish Thickness - Post	60 µin
Contact Finish Thickness - Post	1.52 µm
Contact Length - Mating	7.49 mm
Contact Length - Mating	0.295 in
Contact Length - Post [x]	0.135 in
Contact Length - Post [x]	3.43 mm
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	White
Insulation Height	0.13 in
Insulation Height	3.3 mm
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions Loaded	All
Number of Rows	1
Overall Contact Length	14.22 mm
Overall Contact Length	0.56 in
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

002247 Series

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Overall Contact Length	Overall Contact Length	Contact Shape	Mounting Type	Insulation Color	Number of Rows	Shrouding	Insulation Height	Insulation Height	Number of Positions Loaded	Material Flammability Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Connector Type	Fastening Type	Style	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Material	Contact Length - Mating	Contact Length - Mating	Number of Positions	Contact Type	Termination	Contact Finish - Post	Applications	Pitch - Mating	Pitch - Mating
Molex 0022474023	60 Áin	1.52 Ám	14.22 mm	0.56 in	Square	Through Hole	White	1	Unshrouded	0.13 in	3.3 mm	All	UL94 V-0	60 µin	1.52 µm	Header	Push-Pull	Board to Board Cable	0.135 in	3.43 mm	Nylon Polyamide (PA)	7.49 mm	0.295 in	2	Male Pin	Solder	Tin	Automotive General Purpose Medical Telecommunications	0.1 in	2.54 mm
Molex 0022474073	60 Áin	1.52 Ám	14.22 mm	0.56 in	Square	Through Hole	White	1	Unshrouded	0.13 in	3.3 mm	All	UL94 V-0	60 µin	1.52 µm	Header	Push-Pull	Board to Board Cable	0.135 in	3.43 mm	Nylon Polyamide (PA)	7.49 mm	0.295 in	7	Male Pin	Solder	Tin	Automotive General Purpose Medical Telecommunications	0.1 in	2.54 mm
Molex 0022474103	60 Áin	1.52 Ám	14.22 mm	0.56 in	Square	Through Hole	White	1	Unshrouded	0.13 in	3.3 mm	All	UL94 V-0	60 µin	1.52 µm	Header	Push-Pull	Board to Board Cable	0.135 in	3.43 mm	Nylon Polyamide (PA)	7.49 mm	0.295 in	10	Male Pin	Solder	Tin	Automotive General Purpose Medical Telecommunications	0.1 in	2.54 mm
Molex 0022474033	60 Áin	1.52 Ám	14.22 mm	0.56 in	Square	Through Hole	White	1	Unshrouded	0.13 in	3.3 mm	All	UL94 V-0	60 µin	1.52 µm	Header	Push-Pull	Board to Board Cable	0.135 in	3.43 mm	Nylon Polyamide (PA)	7.49 mm	0.295 in		Male Pin	Solder	Tin	Automotive General Purpose Medical Telecommunications	0.1 in	2.54 mm
