ActiveEDAC Inc.

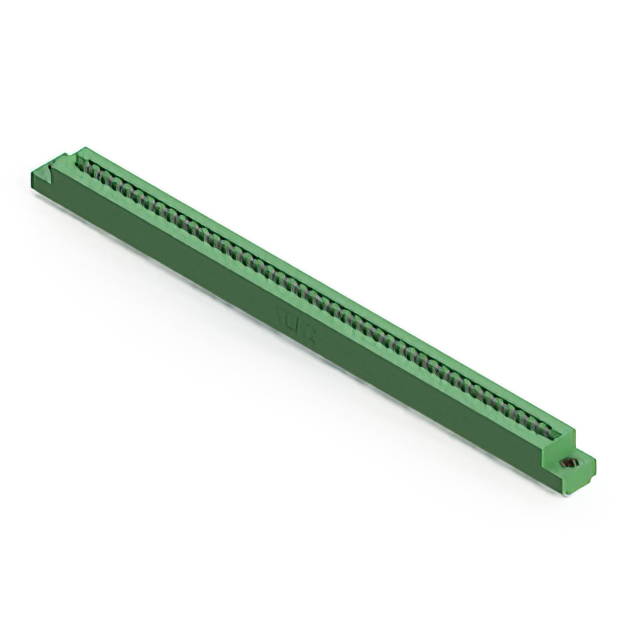

CARD EDGE CONNECTOR, 43 CONTACT(S), 1 ROW(S), FEMALE, RIGHT ANGLE, 0.156 INCH PITCH, SOLDER TERMINAL, M3, GREEN INSULATOR,
Deep-Dive with AI
Search across all available documentation for this part.
307-043-459-107
ActiveEDAC Inc.
CARD EDGE CONNECTOR, 43 CONTACT(S), 1 ROW(S), FEMALE, RIGHT ANGLE, 0.156 INCH PITCH, SOLDER TERMINAL, M3, GREEN INSULATOR,
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 307-043-459-107 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Tin |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Flange Feature | Top Opening, Flush Mount, M3, Threaded Insert |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 43 |
| Number of Positions/Bay/Row [custom] | 43 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
307-043 Series
...
| Part | Color | Read Out | Gender | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Card Type | Contact Type | Number of Rows | Mounting Type | Contact Finish | Contact Material | Termination | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Number of Positions | Pitch [x] | Pitch [x] | Number of Positions/Bay/Row [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Material - Insulation | Termination Rows | Contact Finish Thickness | Contact Finish Thickness | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Green | Dual | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Semi Bellows | 2 | Through Hole | Tin | Copper Alloy | Wire Wrap | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | 86 | 0.156 in | 3.96 mm | 43 | -40 °C | 105 ░C | Polyester Thermoplastic | 1 | |||
EDAC Inc. | Green | Dual | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Semi Bellows | 2 | Surface Mount | Tin | Copper Alloy | Solder Eyelet(s) | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | 86 | 0.156 in | 3.96 mm | 43 | -40 °C | 105 ░C | Polyester Thermoplastic | 1 | |||
EDAC Inc. | Green | Dual | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Semi Bellows | 2 | Through Hole | Tin | Copper Alloy | Wire Wrap | 3.96 mm | 0.156 in | Flush Mount Top Opening Unthreaded | 86 | 0.156 in | 3.96 mm | 43 | -40 °C | 105 ░C | Polyester Thermoplastic | 1 | |||
EDAC Inc. | Green | Single | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | Semi Bellows | 1 | Through Hole Right Angle | Tin | Copper Alloy | Solder | 3.25 mm | 0.128 " | Flush Mount Side Opening Unthreaded | 43 | 0.156 in | 3.96 mm | 43 | -40 °C | 105 ░C | Polyester Thermoplastic | 1 | |||
EDAC Inc. | Green | Dual | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Semi Bellows | 2 | Through Hole Right Angle | Tin | Copper Alloy | Solder | Flush Mount M3 Threaded Insert Top Opening | 86 | 0.156 in | 3.96 mm | 43 | -40 °C | 105 ░C | Polyester Thermoplastic | 1 | |||||
EDAC Inc. | Green | Single | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | Semi Bellows | 1 | Through Hole Right Angle | Gold | Copper Alloy | Solder | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | 43 | 0.156 in | 3.96 mm | 43 | -40 °C | 105 ░C | Polyester Thermoplastic | 1 | 10 Áin | 0.25 Ám | |
EDAC Inc. | Green | Dual | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Semi Bellows | 2 | Through Hole | Gold | Copper Alloy | Solder | 4-40 Flush Mount Threaded Insert Top Opening | 86 | 0.156 in | 3.96 mm | 43 | -40 °C | 105 ░C | Polyester Thermoplastic | 1 | 10 Áin | 0.25 Ám | Card Guides | ||
EDAC Inc. | Green | Dual | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Semi Bellows | 2 | Surface Mount | Tin | Copper Alloy | Solder Eyelet(s) | 3.25 mm | 0.128 " | Flush Mount Side Opening Unthreaded | 86 | 0.156 in | 3.96 mm | 43 | -40 °C | 105 ░C | Polyester Thermoplastic | 1 | |||
EDAC Inc. | Green | Single | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | Semi Bellows | 1 | Through Hole Right Angle | Tin | Copper Alloy | Solder | Flush Mount M3 Threaded Insert Top Opening | 43 | 0.156 in | 3.96 mm | 43 | -40 °C | 105 ░C | Polyester Thermoplastic | 1 | |||||
EDAC Inc. | Green | Dual | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Semi Bellows | 2 | Through Hole | Tin | Copper Alloy | Wire Wrap | 3.25 mm | 0.128 " | Flush Mount Side Opening Unthreaded | 86 | 0.156 in | 3.96 mm | 43 | -40 °C | 105 ░C | Polyester Thermoplastic | 1 |
