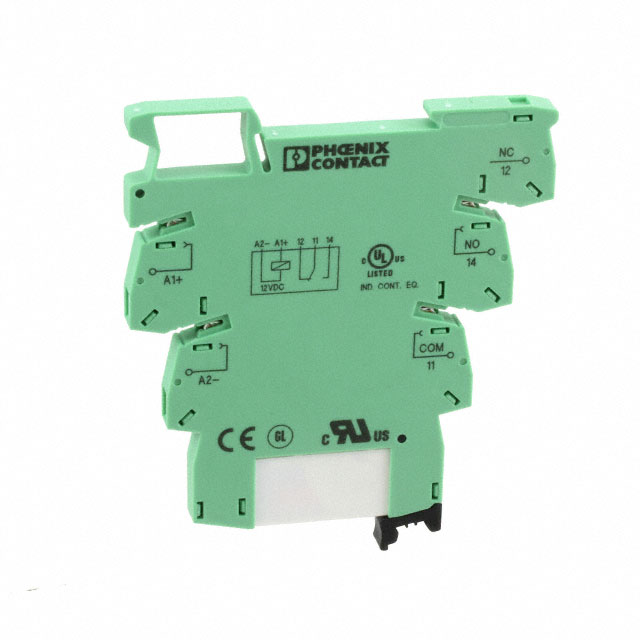

2967442

Obsolete

Phoenix Contact

RELAY GEN PURPOSE SPDT 50MA 12V

Search across all available documentation for this part.

Obsolete

Phoenix Contact

RELAY GEN PURPOSE SPDT 50MA 12V

Technical Specifications

Parameters and characteristics for this part

Specification	2967442

Coil Current	15.3 mA
Coil Resistance	784 Ohms
Coil Type	Non Latching
Coil Voltage	12 VDC
Contact Form	SPDT (1 Form C)
Contact Material	Silver (Ag), Gold (Au)
Contact Rating (Current)	50 mA
Features	Lighted Indicator, Socket Included
Mounting Type	DIN Rail
Operate Time	5 ms
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-25 °C
Relay Type	General Purpose
Release Time	8 ms
Switching Voltage	36 VDC, 30 VAC
Termination Style	Spring Terminal

Part	Coil Voltage	Contact Material	Relay Type	Switching Voltage	Contact Form	Coil Type	Contact Rating (Current)	Mounting Type	Release Time	Operate Time	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Coil Resistance	Coil Current	Features
Phoenix Contact 2967439	12 VDC	Silver Tin Oxide (AgSnO)	General Purpose	250 VAC 250 VDC	SPDT (1 Form C)	Non Latching	6 A	DIN Rail	8 ms	5 ms	-25 °C	60 °C	Spring Terminal	784 Ohms	15.3 mA	Lighted Indicator Socket Included
Phoenix Contact 2967442	12 VDC	Gold (Au) Silver (Ag)	General Purpose	30 VAC 36 VDC	SPDT (1 Form C)	Non Latching	50 mA	DIN Rail	8 ms	5 ms	-25 °C	60 °C	Spring Terminal	784 Ohms	15.3 mA	Lighted Indicator Socket Included

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

General Purpose Relay SPDT (1 Form C) DIN Rail

Technical documentation and resources

No documents available
