96-9574-9531

Active

Kester Solder

K100LD 3.3%/268 .031 500 G ROBO

Search across all available documentation for this part.

Active

Kester Solder

K100LD 3.3%/268 .031 500 G ROBO

Technical Specifications

Parameters and characteristics for this part

Specification	96-9574-9531

Composition	Sn99.3Cu0.7 (99.3/0.7)
Flux Type	No-Clean
Form	Spool
Form	17.64 oz, 500 g
Melting Point [custom]	441 °F
Melting Point [custom]	227 °C
Shelf Life	36 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature [Max]	40 °C
Storage/Refrigeration Temperature [Min]	10 °C
Type	Wire Solder
Wire Gauge	20 AWG, 22 SWG

Part	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Form	Form	Wire Gauge	Type	Shelf Life Start	Composition	Flux Type	Shelf Life	Melting Point [custom]	Melting Point [custom]	Diameter [diameter]	Diameter [diameter]	Wire Gauge
Kester Solder 96-9574-9540	10 °C	40 °C	Spool	17.64 oz 500 g	18 AWG 19 SWG	Wire Solder	Date of Manufacture	Sn99.3Cu0.7 (99.3/0.7)	No-Clean	36 Months	441 °F	227 °C	1.02 mm	0.04 in
Kester Solder 96-9574-9520	10 °C	40 °C	Spool	17.64 oz 500 g	24 AWG 25 mmý	Wire Solder	Date of Manufacture	Sn99.3Cu0.7 (99.3/0.7)	No-Clean	36 Months	441 °F	227 °C	0.51 mm	0.02 in
Kester Solder 96-9574-9531	10 °C	40 °C	Spool	17.64 oz 500 g		Wire Solder	Date of Manufacture	Sn99.3Cu0.7 (99.3/0.7)	No-Clean	36 Months	441 °F	227 °C			20 AWG 22 SWG
Kester Solder 96-9574-9525	10 °C	40 °C	Spool	17.64 oz 500 g		Wire Solder	Date of Manufacture	Sn99.3Cu0.7 (99.3/0.7)	No-Clean	36 Months	441 °F	227 °C			22 AWG 23 SWG
Kester Solder 96-9574-9515	10 °C	40 °C	Spool	17.64 oz 500 g	27 AWG 28 SWG	Wire Solder	Date of Manufacture	Sn99.3Cu0.7 (99.3/0.7)	No-Clean	36 Months	441 °F	227 °C	0.38 mm	0.015 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

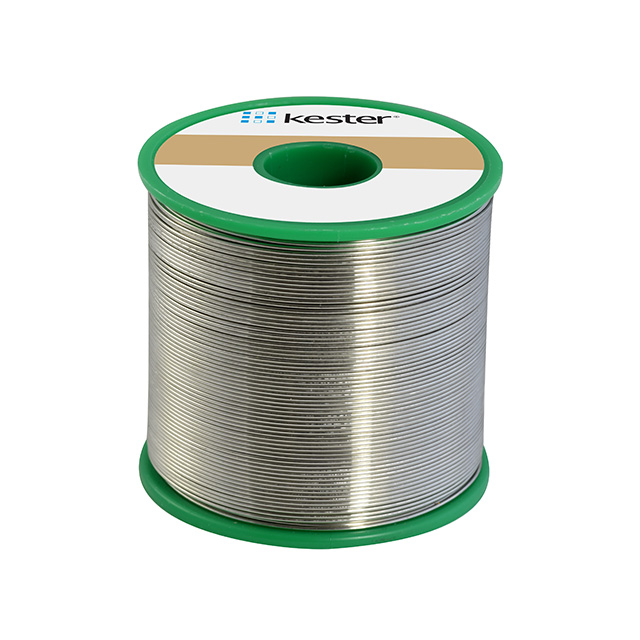

Lead Free No-Clean Wire Solder Sn99.3Cu0.7 (99.3/0.7) 20 AWG, 22 SWG Spool, 17.64 oz (500g)
