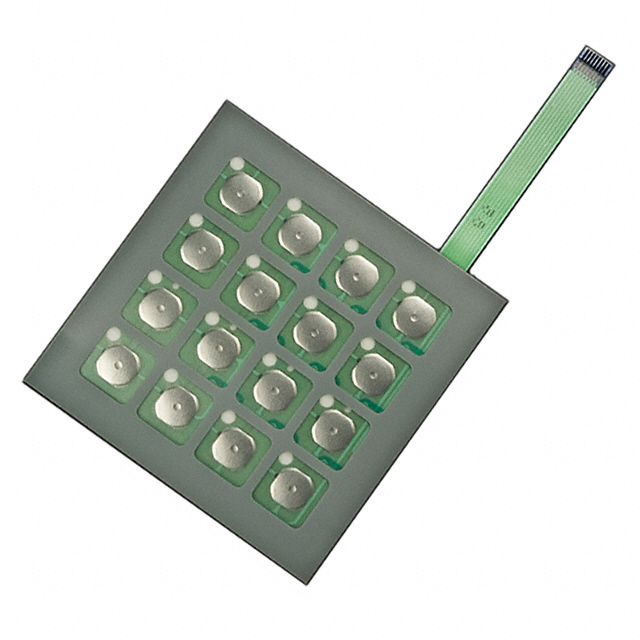

FMBN16BE
ActiveNKK Switches
KEYPAD, 4 X 4, MATRIX, 20 MA, 24 V
Deep-Dive with AI
Search across all available documentation for this part.
FMBN16BE
ActiveNKK Switches
KEYPAD, 4 X 4, MATRIX, 20 MA, 24 V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FMBN16BE |
|---|---|
| Contact Rating @ Voltage | 0.02 A, 24 VDC |
| Illumination | Non-Illuminated |
| Key Color | Transparent |
| Key Type | Polyester Overlay |
| Legend | Customizable (Included) |
| Legend Type | Interchangeable |
| Matrix (Columns x Rows) [custom] | 4 |
| Matrix (Columns x Rows) [custom] | 4 |
| Mounting Type | Panel Mount, Front |
| Number of Keys | 16 |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -15 °C |
| Operational Life | 1000000 Cycles |
| Output Type | 1.81 mOhm |
| Switch Type | Membrane (Snap Dome) |
| Termination Style | Cable with Connector |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
FMBN16 Series
Keypad Switch 16 Polyester Overlay Keys Membrane (Snap Dome) Contacts Matrix Output Non-Illuminated 0.02A @ 24VDC
