C6PPG-1618M

Active

CW Industries

DIP CABLE - CDP16G/AE16M/CDP16G

Search across all available documentation for this part.

Active

CW Industries

DIP CABLE - CDP16G/AE16M/CDP16G

Technical Specifications

Parameters and characteristics for this part

Part	Contact Finish	Cable Termination	Usage	Length [x]	Length [x]	Pitch - Cable	Pitch - Cable	Number of Rows	Number of Positions	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Shielding	Pitch - Connector	Pitch - Connector	Color	Length	Length	Length	Number of Positions
CW Industries C6PPG-1418G	Gold	IDC	Board In Socket (0.3")	457.2 mm	1.5 ft	0.05 "	1.27 mm	2	14	DIP to DIP	10 Áin	0.25 Ám	Unshielded	0.1 in	2.54 mm
CW Industries C6PPG-1406M	Gold	IDC	Board In Socket (0.3")			0.05 "	1.27 mm	2	14	DIP to DIP	10 Áin	0.25 Ám	Unshielded	0.1 in	2.54 mm	Multiple Ribbon	152.4 mm	6 "	0.5 '
CW Industries C6PPG-1636G	Gold	IDC	Board In Socket (0.3")	914.4 mm	3 ft	0.05 "	1.27 mm	2		DIP to DIP	10 Áin	0.25 Ám	Unshielded	0.1 in	2.54 mm					16
CW Industries C6PPG-1618M	Gold	IDC	Board In Socket (0.3")	457.2 mm	1.5 ft	0.05 "	1.27 mm	2		DIP to DIP	10 Áin	0.25 Ám	Unshielded	0.1 in	2.54 mm	Multiple Ribbon				16
CW Industries C6PPG-1418M	Gold	IDC	Board In Socket (0.3")	457.2 mm	1.5 ft	0.05 "	1.27 mm	2	14	DIP to DIP	10 Áin	0.25 Ám	Unshielded	0.1 in	2.54 mm	Multiple Ribbon
CW Industries C6PPG-1606M	Gold	IDC	Board In Socket (0.3")			0.05 "	1.27 mm	2		DIP to DIP	10 Áin	0.25 Ám	Unshielded	0.1 in	2.54 mm	Multiple Ribbon	152.4 mm	6 "	0.5 '	16
CW Industries C6PPG-1436G	Gold	IDC	Board In Socket (0.3")	914.4 mm	3 ft	0.05 "	1.27 mm	2	14	DIP to DIP	10 Áin	0.25 Ám	Unshielded	0.1 in	2.54 mm
CW Industries C6PPG-1606G	Gold	IDC	Board In Socket (0.3")			0.05 "	1.27 mm	2		DIP to DIP	10 Áin	0.25 Ám	Unshielded	0.1 in	2.54 mm		152.4 mm	6 "	0.5 '	16

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

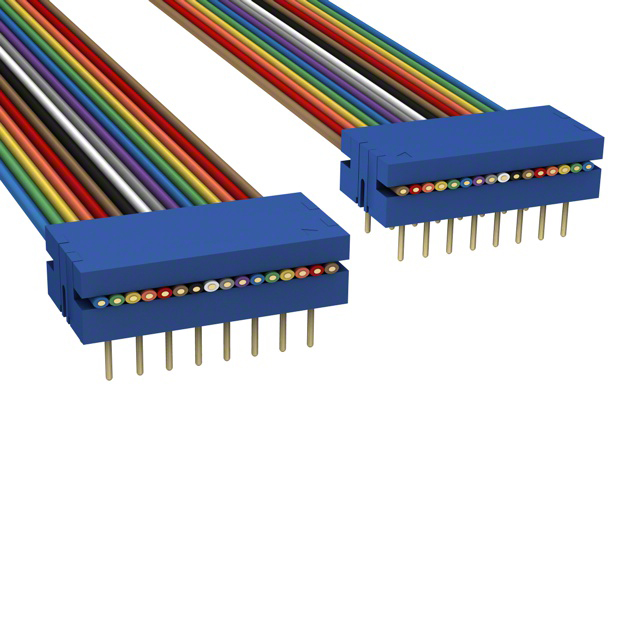

16 Position Cable Assembly Rectangular DIP to DIP 1.50' (457.20mm)
