BU-P3791

Active

Mueller Electric Co

RF / COAXIAL CONNECTOR, BNC COAXIAL, STRAIGHT PLUG, CRIMP, 50 OHM, RG58/U, BRASS

Search across all available documentation for this part.

Active

Mueller Electric Co

RF / COAXIAL CONNECTOR, BNC COAXIAL, STRAIGHT PLUG, CRIMP, 50 OHM, RG58/U, BRASS

Technical Specifications

Parameters and characteristics for this part

Specification	BU-P3791

Body Finish	Nickel
Body Material	Brass
Cable Group	RG-58
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Housing Color	Silver
Impedance	50 Ohms

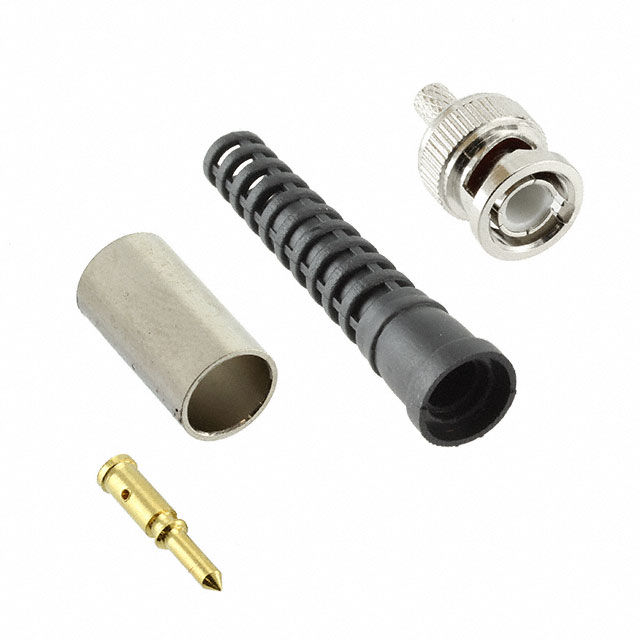

Includes	1 Ferrule, 1 Contact, 1 Strain Relief, 1 Connector
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	170 °C
Operating Temperature [Min]	-50 °C
Shield Termination	Crimp

Part	Cable Group	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Connector Style	Includes	Fastening Type	Body Finish	Body Material	Connector Type	Number of Ports	Shield Termination	Dielectric Material	Mounting Type	Housing Color	Center Contact Material	Impedance	Center Contact Plating
Mueller Electric Co BU-P3791	RG-58	-50 °C	170 °C	Crimp	BNC	1 Connector 1 Contact 1 Ferrule 1 Strain Relief	Bayonet Lock	Nickel	Brass	Male Pin Plug	1	Crimp	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)	Silver	Brass	50 Ohms	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

BNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
