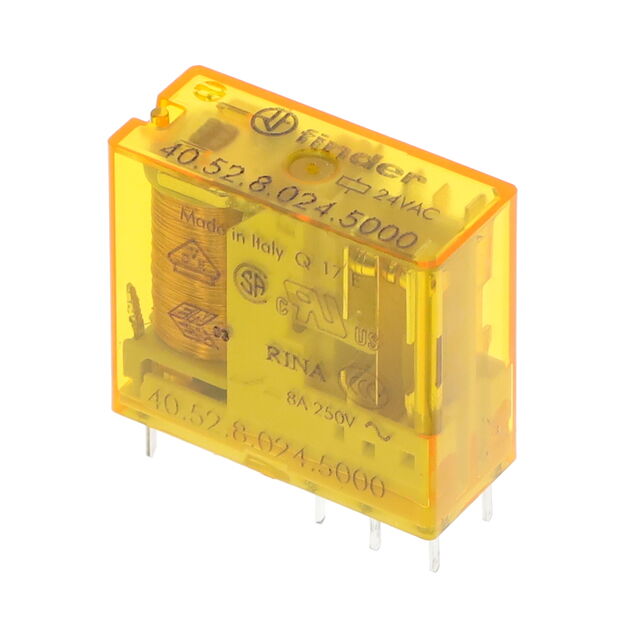

40.52.8.024.5000

Active

Finder Relays, Inc.

RELAY GEN PURPOSE DPDT 8A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

40.52.8.024.5000

Active

Finder Relays, Inc.

RELAY GEN PURPOSE DPDT 8A 24V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	40.52.8.024.5000

Approval Agency	EAC, CCC, RINA, CSA, cURus, VDE, ENEC
Coil Current	45 mA
Coil Resistance	320 Ohms
Coil Type	Non Latching
Coil Voltage	24 VAC
Contact Form	DPDT (2 Form C)
Contact Material	Silver Nickel (AgNi)
Contact Rating (Current)	8 A
Load - Max Switching	3200 VA
Mounting Type	Through Hole
Must Operate Voltage	19.2 VAC
Must Release Voltage	4.8 VAC
Operate Time	7 ms
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	3 ms
Seal Rating	Sealed - Flux Protection
Switching Voltage [Max]	400 VAC
Termination Style	PC Pin

40.52.8 Series

Part	Contact Form	Termination Style	Load - Max Switching	Contact Rating (Current)	Must Operate Voltage	Mounting Type	Seal Rating	Operating Temperature [Max]	Operating Temperature [Min]	Coil Type	Relay Type	Coil Resistance	Must Release Voltage	Operate Time	Coil Voltage	Coil Current	Switching Voltage [Max]	Approval Agency	Release Time	Contact Material
Finder Relays, Inc. 40.52.8.230.5000	DPDT (2 Form C)	Plug In	3200 VA	8 A	184 VAC	Socketable	Sealed - Flux Protection	85 °C	-40 °C	Non Latching	General Purpose	28 kOhms	46 VAC	7 ms	230 VAC	5 mA	400 VAC	CCC CSA cURus EAC ENEC RINA VDE	3 ms	Silver Nickel (AgNi)
Finder Relays, Inc. 40.52.8.060.0000	DPDT (2 Form C)	Plug In	3200 VA	8 A	48 VAC/DC	Socketable	Sealed - Flux Protection	85 °C	-40 °C	Non Latching	General Purpose	2.1 kOhms	12 VAC	7 ms	60 VAC	16.8 mA	400 VAC	CCC CSA cURus EAC ENEC RINA VDE	3 ms	Silver Nickel (AgNi)
Finder Relays, Inc. 40.52.8.012.0000	DPDT (2 Form C)	Plug In	3200 VA	8 A	9.6 VAC/DC	Socketable	Sealed - Flux Protection	85 °C	-40 °C	Non Latching	General Purpose	80 Ohms	2.4 VAC/DC	7 ms	12 VAC/DC	90 mA	400 VAC	CCC CSA cURus EAC ENEC RINA VDE	3 ms	Silver Nickel (AgNi)
Finder Relays, Inc. 40.52.8.048.0000	DPDT (2 Form C)	Plug In	3200 VA	8 A	38.4 VAC	Socketable	Sealed - Flux Protection	85 °C	-40 °C	Non Latching	General Purpose	1.35 kOhms	9.6 VAC	7 ms	48 VAC/DC	21 mA	400 VAC	CCC CSA cURus EAC ENEC RINA VDE	3 ms	Silver Nickel (AgNi)
Finder Relays, Inc. 40.52.8.240.0001	DPDT (2 Form C)	Plug In	3200 VA	8 A	192 VAC	Socketable		85 °C	-40 °C	Non Latching	General Purpose	31.5 kOhms	48 VAC	7 ms	240 VAC	4.1 mA	400 VAC	CCC CSA cURus EAC ENEC RINA VDE	3 ms	Silver Nickel (AgNi)
Finder Relays, Inc. 40.52.8.024.0001	DPDT (2 Form C)	Plug In	3200 VA	8 A	19.2 VAC	Socketable		85 °C	-40 °C	Non Latching	General Purpose	320 Ohms	4.8 VAC	7 ms	24 VAC	45 mA	400 VAC	CCC CSA cURus EAC ENEC RINA VDE	3 ms	Silver Nickel (AgNi)
Finder Relays, Inc. 40.52.8.012.0001	DPDT (2 Form C)	Plug In	3200 VA	8 A	9.6 VAC/DC	Socketable		85 °C	-40 °C	Non Latching	General Purpose	80 Ohms	2.4 VAC/DC	7 ms	12 VAC/DC	90 mA	400 VAC	CCC CSA cURus EAC ENEC RINA VDE	3 ms	Silver Nickel (AgNi)
Finder Relays, Inc. 40.52.8.230.0300	DPST-NO (2 Form A)	Plug In	3200 VA	8 A	184 VAC	Socketable	Sealed - Flux Protection	85 °C	-40 °C	Non Latching	General Purpose	28 kOhms	46 VAC	7 ms	230 VAC	5 mA	400 VAC	CCC CSA cURus EAC ENEC RINA VDE	3 ms	Silver Nickel (AgNi)
Finder Relays, Inc. 40.52.8.024.5000	DPDT (2 Form C)	PC Pin	3200 VA	8 A	19.2 VAC	Through Hole	Sealed - Flux Protection	85 °C	-40 °C	Non Latching	General Purpose	320 Ohms	4.8 VAC	7 ms	24 VAC	45 mA	400 VAC	CCC CSA cURus EAC ENEC RINA VDE	3 ms	Silver Nickel (AgNi)
Finder Relays, Inc. 40.52.8.024.0300	DPST-NO (2 Form A)	Plug In	3200 VA	8 A	19.2 VAC	Socketable	Sealed - Flux Protection	85 °C	-40 °C	Non Latching	General Purpose	320 Ohms	4.8 VAC	7 ms	24 VAC	45 mA	400 VAC	CCC CSA cURus EAC ENEC RINA VDE	3 ms	Silver Nickel (AgNi)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 15.25
		10	$ 13.32
		25	$ 12.62
		50	$ 12.12
		100	$ 11.63
		250	$ 11.02
		500	$ 10.58

Description

General part information

40.52.8 Series

General Purpose Relay DPDT (2 Form C) 24VAC Coil Through Hole
