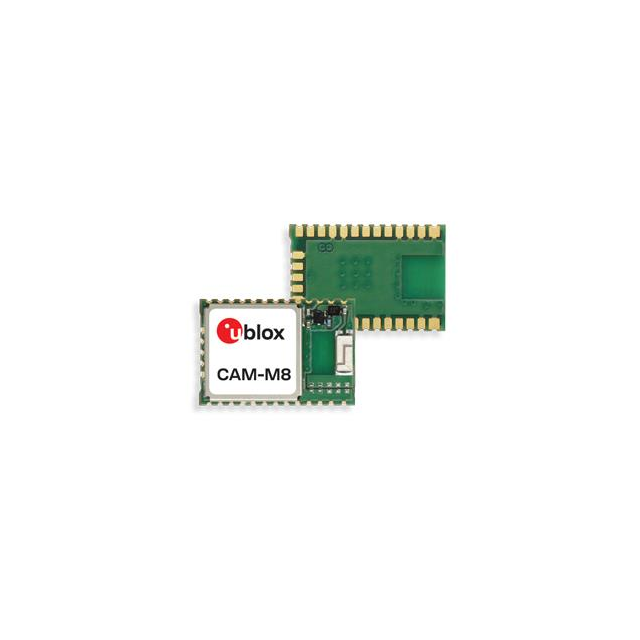

CAM-M8Q-0
Activeu-blox
RF RCVR GNSS/GPS 1.575GHZ MODULE
Deep-Dive with AI
Search across all available documentation for this part.
CAM-M8Q-0
Activeu-blox
RF RCVR GNSS/GPS 1.575GHZ MODULE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CAM-M8Q-0 |
|---|---|
| Antenna Connector | On-Board, Chip |
| Applications | General Purpose |
| Current - Receiving | 29 mA |
| Data Interface | SPI, UART |
| Frequency | 1.575 GHz |
| Modulation or Protocol | GPS, QZSS, GLONASS, BeiDou, GNSS |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 31-SMD Module |
| Sensitivity | -167 dBm |
| Supplier Device Package | Module |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 2.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 31.50 | |
| 10 | $ 29.69 | |||
| 50 | $ 24.34 | |||
| 100 | $ 20.76 | |||
| Digi-ReelÛ | 1 | $ 31.50 | ||
| 10 | $ 29.69 | |||
| 50 | $ 24.34 | |||
| 100 | $ 20.76 | |||
| Tape & Reel (TR) | 500 | $ 19.51 | ||
Description
General part information
CAM-M8 Series
CAM-M8 RF Receiver BeiDou, GLONASS, GNSS, GPS, QZSS 1.575GHz -167dBm On-Board, Chip Module
