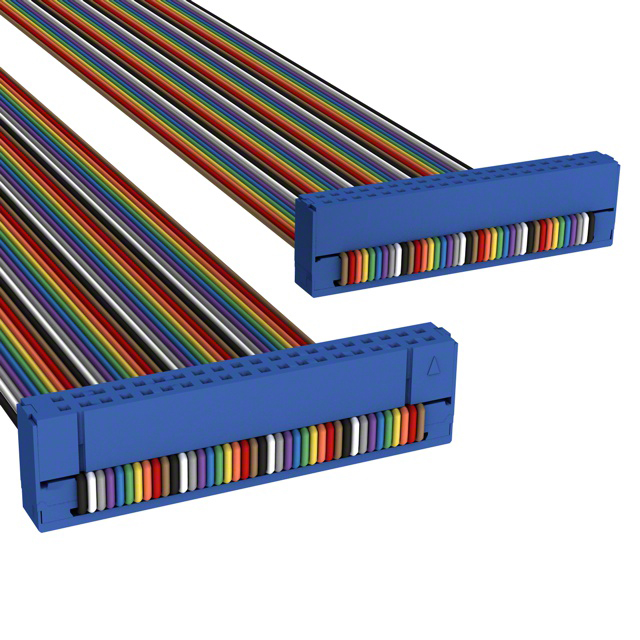

C3BBG-4036M
ActiveCW Industries
IDC CABLE - CSR40G/AE40M/CSR40G
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsRibbon Cable Assembly Length Guide
C3BBG-4036M
ActiveCW Industries
IDC CABLE - CSR40G/AE40M/CSR40G
Deep-Dive with AI
DocumentsRibbon Cable Assembly Length Guide
Technical Specifications
Parameters and characteristics for this part
| Specification | C3BBG-4036M |
|---|---|
| Cable Termination | IDC |
| Color | Ribbon, Multiple |
| Connector Type | Socket to Socket |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Features | Strain Relief |
| Length [x] | 3 ft |
| Length [x] | 914.4 mm |
| Number of Positions | 40 |
| Number of Rows | 2 |
| Pitch - Cable | 0.05 " |
| Pitch - Cable | 1.27 mm |
| Pitch - Connector | 0.1 in |
| Pitch - Connector | 2.54 mm |
| Shielding | Unshielded |
C3BBG-4 Series
| Part | Length | Length | Length | Features | Color | Pitch - Cable | Pitch - Cable | Contact Finish Thickness | Contact Finish Thickness | Pitch - Connector | Pitch - Connector | Shielding | Cable Termination | Contact Finish | Number of Rows | Connector Type | Number of Positions | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CW Industries | 152.4 mm | 6 " | 0.5 ' | Strain Relief | Multiple Ribbon | 0.05 " | 1.27 mm | 10 Áin | 0.25 Ám | 0.1 in | 2.54 mm | Unshielded | IDC | Gold | 2 | Socket to Socket | 40 | ||
CW Industries | 152.4 mm | 6 " | 0.5 ' | Strain Relief | 0.05 " | 1.27 mm | 10 Áin | 0.25 Ám | 0.1 in | 2.54 mm | Unshielded | IDC | Gold | 2 | Socket to Socket | 40 | |||
CW Industries | Strain Relief | 0.05 " | 1.27 mm | 10 Áin | 0.25 Ám | 0.1 in | 2.54 mm | Unshielded | IDC | Gold | 2 | Socket to Socket | 40 | 3 ft | 914.4 mm | ||||
CW Industries | Strain Relief | Multiple Ribbon | 0.05 " | 1.27 mm | 10 Áin | 0.25 Ám | 0.1 in | 2.54 mm | Unshielded | IDC | Gold | 2 | Socket to Socket | 40 | 3 ft | 914.4 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 24.71 | |
| 10 | $ 19.05 | |||
| 25 | $ 17.25 | |||
| 50 | $ 16.03 | |||
| 100 | $ 14.93 | |||
| 250 | $ 13.63 | |||
| 500 | $ 12.76 | |||
Description
General part information
C3BBG-4 Series
40 Position Cable Assembly Rectangular Socket to Socket 3.00' (914.40mm)
