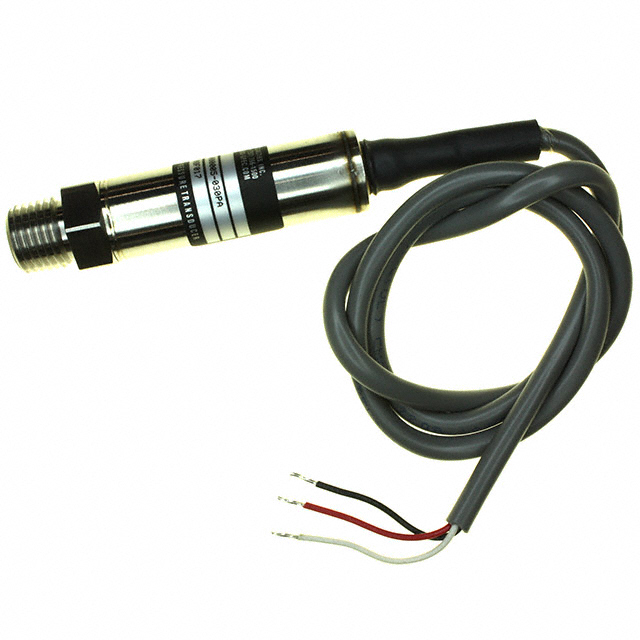

US331-000005-030PA

Active

TE Connectivity Measurement Specialties

SENSOR 30PSIA 1/4NPT .5-4.5V 2'

Search across all available documentation for this part.

Active

TE Connectivity Measurement Specialties

SENSOR 30PSIA 1/4NPT .5-4.5V 2'

Technical Specifications

Parameters and characteristics for this part

Specification	US331-000005-030PA

Accuracy	0.25 %
Applications	Industrial Automation
Features	Temperature Compensated, Amplified Output
Maximum Pressure [Max]	90 PSI
Maximum Pressure [Max]	620.53 kPa
Operating Pressure	206.84 kPa
Operating Pressure	30 PSI
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Output [Max]	4.5 V
Output [Min]	0.5 V
Output Type	Analog Voltage
Package / Case	Cylinder
Port Size [custom]	NPT
Port Size [custom]	Male
Port Size [x]	0.25 "
Port Size [x]	6.35 mm
Port Style	Threaded
Termination Style	Cable
Voltage - Supply [Max]	5.25 V
Voltage - Supply [Min]	4.75 V

Part	Package / Case	Maximum Pressure [Max]	Maximum Pressure [Max]	Port Style	Voltage - Supply [Min]	Voltage - Supply [Max]	Output Type	Accuracy	Termination Style	Output [Min]	Output [Max]	Port Size [custom]	Port Size [x]	Port Size [x]	Port Size [custom]	Features	Operating Pressure	Operating Pressure	Applications	Operating Temperature [Min]	Operating Temperature [Max]
TE Connectivity Measurement Specialties US331-000005-030PA	Cylinder	90 PSI	620.53 kPa	Threaded	4.75 V	5.25 V	Analog Voltage	0.25 %	Cable	0.5 V	4.5 V	NPT	0.25 "	6.35 mm	Male	Amplified Output Temperature Compensated	206.84 kPa	30 PSI	Industrial Automation	-40 °C	105 ░C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SENSOR 30PSIA 1/4NPT .5-4.5V 2'
