GRS-4011-0015
ActiveCW Industries

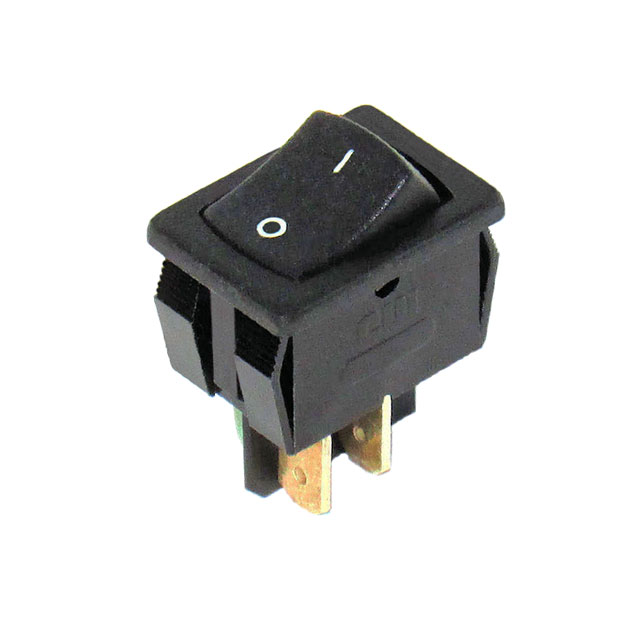

SWITCH ROCKER SPST 8A 125V
Deep-Dive with AI
Search across all available documentation for this part.
GRS-4011-0015
ActiveCW Industries
SWITCH ROCKER SPST 8A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | GRS-4011-0015 |
|---|---|
| Actuator Marking | O I |
| Actuator Type | Concave (Curved) |
| Circuit | SPST |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 8 A |
| Electrical Life | 25000 Steps |
| Features | Terminal Barriers |
| Mechanical Life | 25000 Steps |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -20 C |
| Panel Cutout Dimensions | Rectangular |
| Panel Cutout Dimensions [x] | 19.2 mm |
| Panel Cutout Dimensions [y] | 12.9 mm |
| Switch Function | On-Off |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
| Voltage Rating - AC | 125 V |
GRS-4011 Series
| Part | Voltage Rating - AC | Color - Actuator/Cap | Termination Style | Features | Actuator Type | Actuator Marking | Switch Function | Panel Cutout Dimensions [y] | Panel Cutout Dimensions | Panel Cutout Dimensions [x] | Operating Temperature [Min] | Operating Temperature [Max] | Circuit | Electrical Life | Mounting Type | Mechanical Life | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CW Industries | 125 V | Black | Quick Connect - 0.187" (4.7mm) | Terminal Barriers | Concave (Curved) | O I | On-Off | 12.9 mm | Rectangular | 19.2 mm | -20 C | 105 ░C | SPST | 25000 Steps | Panel Mount Snap-In | 25000 Steps | 8 A |
CW Industries | 125 V | Black | Quick Connect - 0.187" (4.7mm) | Terminal Barriers | Concave (Curved) | O I | On-Off | 12.9 mm | Rectangular | 19.2 mm | -20 C | 105 ░C | SPST | 25000 Steps | Panel Mount Snap-In | 25000 Steps | 16 A |
CW Industries | 125 V | White | Quick Connect - 0.110" (2.8mm) | Terminal Barriers | Concave (Curved) | No Marking | On-Off | 12.9 mm | Rectangular | 19.2 mm | -20 C | 105 ░C | SPST | 25000 Steps | Panel Mount Snap-In | 25000 Steps | 16 A |
CW Industries | 125 V | Black | Quick Connect - 0.187" (4.7mm) | Concave (Curved) | No Marking | On-Off | 12.9 mm | Rectangular | 19.2 mm | SPST | Panel Mount Snap-In | 16 A | |||||
CW Industries | 125 V | White | Quick Connect - 0.187" (4.7mm) | Concave (Curved) | No Marking | On-Off | 12.9 mm | Rectangular | 19.2 mm | -20 C | 105 ░C | SPST | 25000 Steps | Panel Mount Snap-In | 25000 Steps | 16 A | |
CW Industries | 125 V | Black | Quick Connect - 0.187" (4.7mm) | Concave (Curved) | No Marking | Off-Mom | 12.9 mm | Rectangular | 19.2 mm | -20 C | 105 ░C | SPST-NO | 25000 Steps | Panel Mount Snap-In | 100000 Cycles | 13 A | |
CW Industries | 125 V | Black | Quick Connect - 0.187" (4.7mm) | Concave (Curved) | O I | On-Off | 12.9 mm | Rectangular | 19.2 mm | -20 C | 105 ░C | SPST | 25000 Steps | Panel Mount Snap-In | 100000 Cycles | 16 A | |
CW Industries | 125 V | Black | Quick Connect - 0.187" (4.7mm) | Terminal Barriers | Concave (Curved) | No Marking | On-Mom | 12.9 mm | Rectangular | 19.2 mm | -20 C | 105 ░C | SPST-NC | 25000 Steps | Panel Mount Snap-In | 25000 Steps | 8 A |
CW Industries | 125 V | Black | Quick Connect - 0.187" (4.7mm) | Concave (Curved) | Fan | On-Off | 12.9 mm | Rectangular | 19.2 mm | -20 C | 105 ░C | SPST | 25000 Steps | Panel Mount Snap-In | 25000 Steps | 13 A | |
CW Industries | 125 V | Black | Quick Connect - 0.187" (4.7mm) | Concave (Curved) | O - | On-Off | 12.9 mm | Rectangular | 19.2 mm | -20 C | 105 ░C | SPST | 25000 Steps | Panel Mount Snap-In | 100000 Cycles | 16 A |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 500 | $ 0.76 | |
Description
General part information
GRS-4011 Series
Rocker Switch SPST 8A (AC) 125 V Panel Mount, Snap-In
