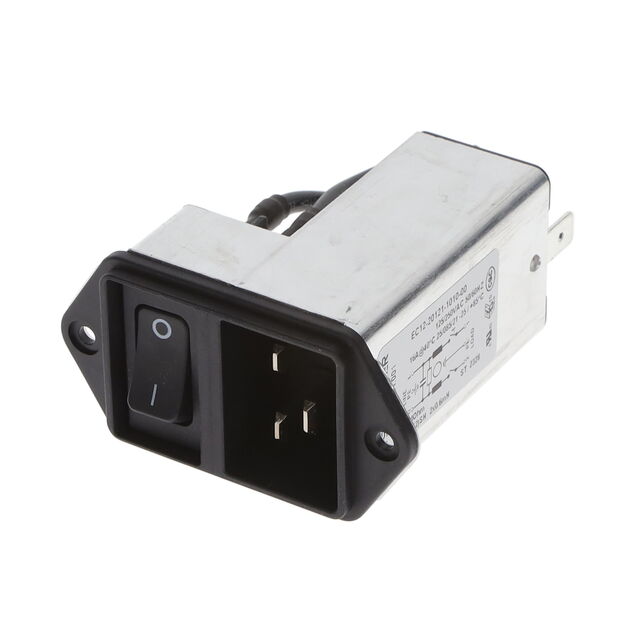

EC12.2201.001
ActiveSCHURTER Inc.
PWR ENT MOD RCPT IEC320-C20 PNL
Deep-Dive with AI
Search across all available documentation for this part.
EC12.2201.001
ActiveSCHURTER Inc.
PWR ENT MOD RCPT IEC320-C20 PNL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EC12.2201.001 |
|---|---|
| Accomodates a Fuse | False |
| Approval Agency | CQC, cURus, ENEC |
| Connector Style | IEC 320-C20 |
| Connector Type | Receptacle, Male Blades - Module |
| Current Rating - Appliance Inlet | 16 A |
| Current Rating - Filter [Max] | 16 A |
| Features | Shielded |
| Filter Type | Filtered (EMI, RFI) - Commercial, Medical |
| Ingress Protection | IP40 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Panel Mount, Flange |
| Panel Cutout Dimensions [x] | 33.9 mm |
| Panel Cutout Dimensions [y] | 48 mm |
| Switch Features | Switch On-Off |
| Termination | 0.25 in |
| Termination | 6.3 mm |
| Termination | Quick Connect |
| Voltage Rating - Appliance Inlet | 250 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 64.98 | |
| 50 | $ 58.32 | |||
Description
General part information
EC12.2201 Series
Power Entry Connector Receptacle, Male Blades - Module IEC 320-C20 Panel Mount, Flange
