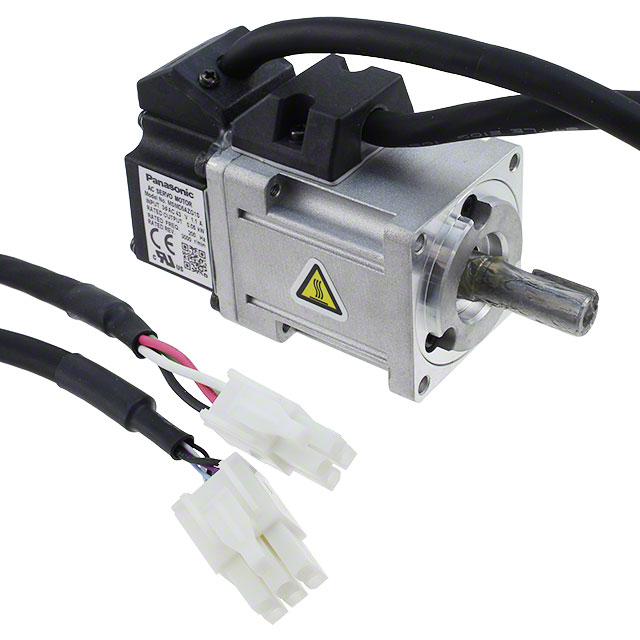

MSMD5AZG1S

Obsolete

Panasonic Industrial Automation Sales

SERVOMOTOR 3000 RPM 100/200V

Deep-Dive with AI

Search across all available documentation for this part.

MSMD5AZG1S

Obsolete

Panasonic Industrial Automation Sales

SERVOMOTOR 3000 RPM 100/200V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MSMD5AZG1S

Approval Agency	TUV, CE, CSA, UL, cULus
Diameter - Shaft [diameter]	0.315 in
Diameter - Shaft [diameter]	8 mm
Encoder Type	Incremental
Features	Key
Function	Servomotor
Length - Shaft and Bearing	0.984 in
Length - Shaft and Bearing	25 mm
Mounting Hole Spacing [x]	1.772 in
Mounting Hole Spacing [x]	45 mm
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Power - Rated	50 W
RPM	3000 RPM
Size / Dimension [x]	1.496 "
Size / Dimension [x]	38 mm
Size / Dimension [y]	38 mm
Size / Dimension [y]	1.496 "
Termination Style	Wire Leads
Torque - Max Momentary (oz-in / mNm)	67.97 oz-in
Torque - Max Momentary (oz-in / mNm)	480 mNm
Torque - Rated (oz-in / mNm)	22.7 oz-in
Torque - Rated (oz-in / mNm)	160 mNm
Type	AC Motor
Voltage - Rated	200 VAC, 100 VAC
Weight	319.78 g
Weight	0.705 lb

MSMD5 Series

Part	Length - Shaft and Bearing	Length - Shaft and Bearing	RPM	Power - Rated	Features	Torque - Max Momentary (oz-in / mNm)	Torque - Max Momentary (oz-in / mNm)	Operating Temperature [Max]	Voltage - Rated	Encoder Type	Termination Style	Mounting Hole Spacing [x]	Mounting Hole Spacing [x]	Approval Agency	Function	Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Torque - Rated (oz-in / mNm)	Torque - Rated (oz-in / mNm)	Diameter - Shaft [diameter]	Diameter - Shaft [diameter]	Weight	Weight
Panasonic Industrial Automation Sales MSMD5AZS1D	0.984 in	25 mm	3000 RPM	50 W	Brake Oil Seal	67.97 oz-in	480 mNm	40 °C	100 VAC 200 VAC	Absolute	Wire Leads	1.772 in	45 mm	CE CSA cULus TUV UL	Servomotor	AC Motor	38 mm	1.496 "	1.496 "	38 mm	22.7 oz-in	160 mNm	0.315 in	8 mm
Panasonic Industrial Automation Sales MSMD5AZJ1A	0.984 in	25 mm	3000 RPM	50 W		67.97 oz-in	480 mNm	40 °C	100 VAC 200 VAC		Wire Leads	1.772 in	45 mm	CE CSA cULus TUV UL	Servomotor	AC Motor	38 mm	1.496 "	1.496 "	38 mm	22.7 oz-in	160 mNm	0.315 in	8 mm	319.78 g	0.705 lb
Panasonic Industrial Automation Sales MSMD5AZJ1B	0.984 in	25 mm	3000 RPM	50 W	Brake	67.97 oz-in	480 mNm	40 °C	100 VAC 200 VAC		Wire Leads	1.772 in	45 mm	CE CSA cULus TUV UL	Servomotor	AC Motor	38 mm	1.496 "	1.496 "	38 mm	22.7 oz-in	160 mNm	0.315 in	8 mm
Panasonic Industrial Automation Sales MSMD5AZG1B	0.984 in	25 mm	3000 RPM	50 W	Brake	67.97 oz-in	480 mNm	40 °C	100 VAC 200 VAC	Incremental	Wire Leads	1.772 in	45 mm	CE CSA cULus TUV UL	Servomotor	AC Motor	38 mm	1.496 "	1.496 "	38 mm	22.7 oz-in	160 mNm	0.315 in	8 mm
Panasonic Industrial Automation Sales MSMD5AZG1U	0.984 in	25 mm	3000 RPM	50 W	Key Oil Seal	67.97 oz-in	480 mNm	40 °C	100 VAC 200 VAC	Incremental	Wire Leads	1.772 in	45 mm	CE CSA cULus TUV UL	Servomotor	AC Motor	38 mm	1.496 "	1.496 "	38 mm	22.7 oz-in	160 mNm	0.315 in	8 mm	319.78 g	0.705 lb
Panasonic Industrial Automation Sales MSMD5AZS1A	0.984 in	25 mm	3000 RPM	50 W		67.97 oz-in	480 mNm	40 °C	100 VAC 200 VAC	Absolute	Wire Leads	1.772 in	45 mm	CE CSA cULus TUV UL	Servomotor	AC Motor	38 mm	1.496 "	1.496 "	38 mm	22.7 oz-in	160 mNm	0.315 in	8 mm	319.78 g	0.705 lb
Panasonic Industrial Automation Sales MSMD5AZG1T	0.984 in	25 mm	3000 RPM	50 W	Brake Key	67.97 oz-in	480 mNm	40 °C	100 VAC 200 VAC	Incremental	Wire Leads	1.772 in	45 mm	CE CSA cULus TUV UL	Servomotor	AC Motor	38 mm	1.496 "	1.496 "	38 mm	22.7 oz-in	160 mNm	0.315 in	8 mm
Panasonic Industrial Automation Sales MSMD5AZJ1U	0.984 in	25 mm	3000 RPM	50 W	Key Oil Seal	67.97 oz-in	480 mNm	40 °C	100 VAC 200 VAC		Wire Leads	1.772 in	45 mm	CE CSA cULus TUV UL	Servomotor	AC Motor	38 mm	1.496 "	1.496 "	38 mm	22.7 oz-in	160 mNm	0.315 in	8 mm	319.78 g	0.705 lb
Panasonic Industrial Automation Sales MSMD5AZG1S	0.984 in	25 mm	3000 RPM	50 W	Key	67.97 oz-in	480 mNm	40 °C	100 VAC 200 VAC	Incremental	Wire Leads	1.772 in	45 mm	CE CSA cULus TUV UL	Servomotor	AC Motor	38 mm	1.496 "	1.496 "	38 mm	22.7 oz-in	160 mNm	0.315 in	8 mm	319.78 g	0.705 lb
Panasonic Industrial Automation Sales MSMD5AZJ1S	0.984 in	25 mm	3000 RPM	50 W	Key	67.97 oz-in	480 mNm	40 °C	100 VAC 200 VAC		Wire Leads	1.772 in	45 mm	CE CSA cULus TUV UL	Servomotor	AC Motor	38 mm	1.496 "	1.496 "	38 mm	22.7 oz-in	160 mNm	0.315 in	8 mm	319.78 g	0.705 lb

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

MSMD5 Series

AC Motor Servomotor 3000 RPM 50W Incremental 100, 200VAC
