2834025

Obsolete

Phoenix Contact

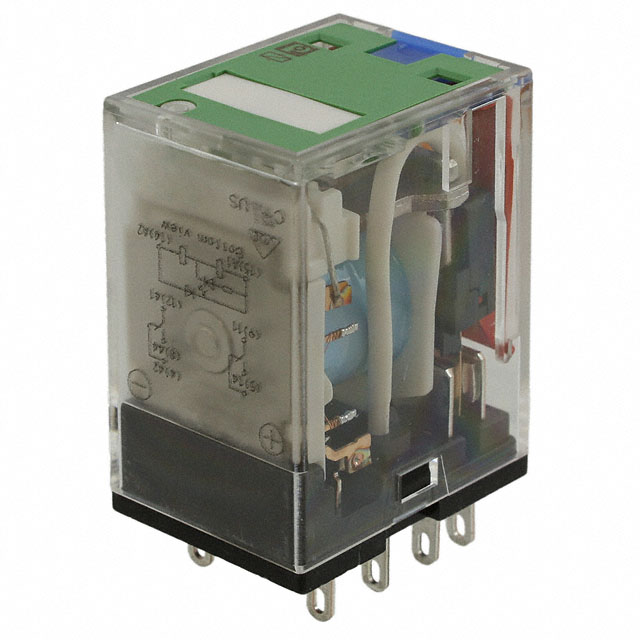

RELAY GEN PURPOSE DPDT 10A 24V

Search across all available documentation for this part.

Obsolete

Phoenix Contact

RELAY GEN PURPOSE DPDT 10A 24V

Technical Specifications

Parameters and characteristics for this part

Specification	2834025

Approval Agency	VDE, UL, EAC, cULus
Coil Current	38 mA
Coil Resistance	636 Ohms
Coil Type	Non Latching
Coil Voltage	24 VDC
Contact Form	DPDT (2 Form C)
Contact Material	Silver (Ag)
Contact Rating (Current)	10 A
Features	Lighted Indicator, Diode, Test Button
Mounting Type	Socketable
Operate Time	13 ms
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-55 °C
Relay Type	General Purpose
Release Time	5 ms
Switching Voltage	250 VAC, 250 VDC
Termination Style	Plug In

Part	Coil Voltage	Relay Type	Switching Voltage	Termination Style	Mounting Type	Contact Material	Contact Rating (Current)	Coil Current	Approval Agency	Operate Time	Release Time	Features	Coil Type	Contact Form	Coil Resistance	Operating Temperature [Max]	Operating Temperature [Min]
Phoenix Contact 2834038	48 VDC	General Purpose	250 VAC 250 VDC	Plug In	Socketable	Silver (Ag)	10 A	19 mA	cULus EAC UL VDE	13 ms	5 ms	Diode Lighted Indicator Test Button	Non Latching	DPDT (2 Form C)	2560 Ohms	70 °C	-55 °C
Phoenix Contact 2834025	24 VDC	General Purpose	250 VAC 250 VDC	Plug In	Socketable	Silver (Ag)	10 A	38 mA	cULus EAC UL VDE	13 ms	5 ms	Diode Lighted Indicator Test Button	Non Latching	DPDT (2 Form C)	636 Ohms	70 °C	-55 °C
Phoenix Contact 2834070	230 VAC	General Purpose	250 VAC 250 VDC	Plug In	Socketable	Silver (Ag)	10 A		cULus EAC UL VDE	10 ms	12 ms		Non Latching	DPDT (2 Form C)	18.79 kOhms	70 °C	-55 °C
Phoenix Contact 2834096	24 VDC	General Purpose	250 VAC 250 VDC	Plug In	Socketable	Silver Nickel (AgNi)	5 A	38 mA	cULus EAC UL VDE	13 ms	5 ms		Non Latching	4PDT (4 Form C)	636 Ohms	70 °C	-55 °C
Phoenix Contact 2834012	12 VDC	General Purpose	250 VAC 250 VDC	Plug In	Socketable	Silver (Ag)	10 A	75 mA	cULus EAC UL VDE	13 ms	5 ms		Non Latching	DPDT (2 Form C)	160 Ohms	70 °C	-55 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

General Purpose Relay DPDT (2 Form C) 24VDC Coil Socketable
